20 Options Guide RX200 S5
Opening the server Preparation
© cognitas. Gesellschft für Technik-Dokumentation mbH 2009 Pfad: W:\Anwendungsdaten\FCT\tim_local\work\PICHOL\OBJ_DOKU-4101-001.fm
4.2 Opening the server
You must remove the fan cover before removing the housing cover.
Removing the fan cover

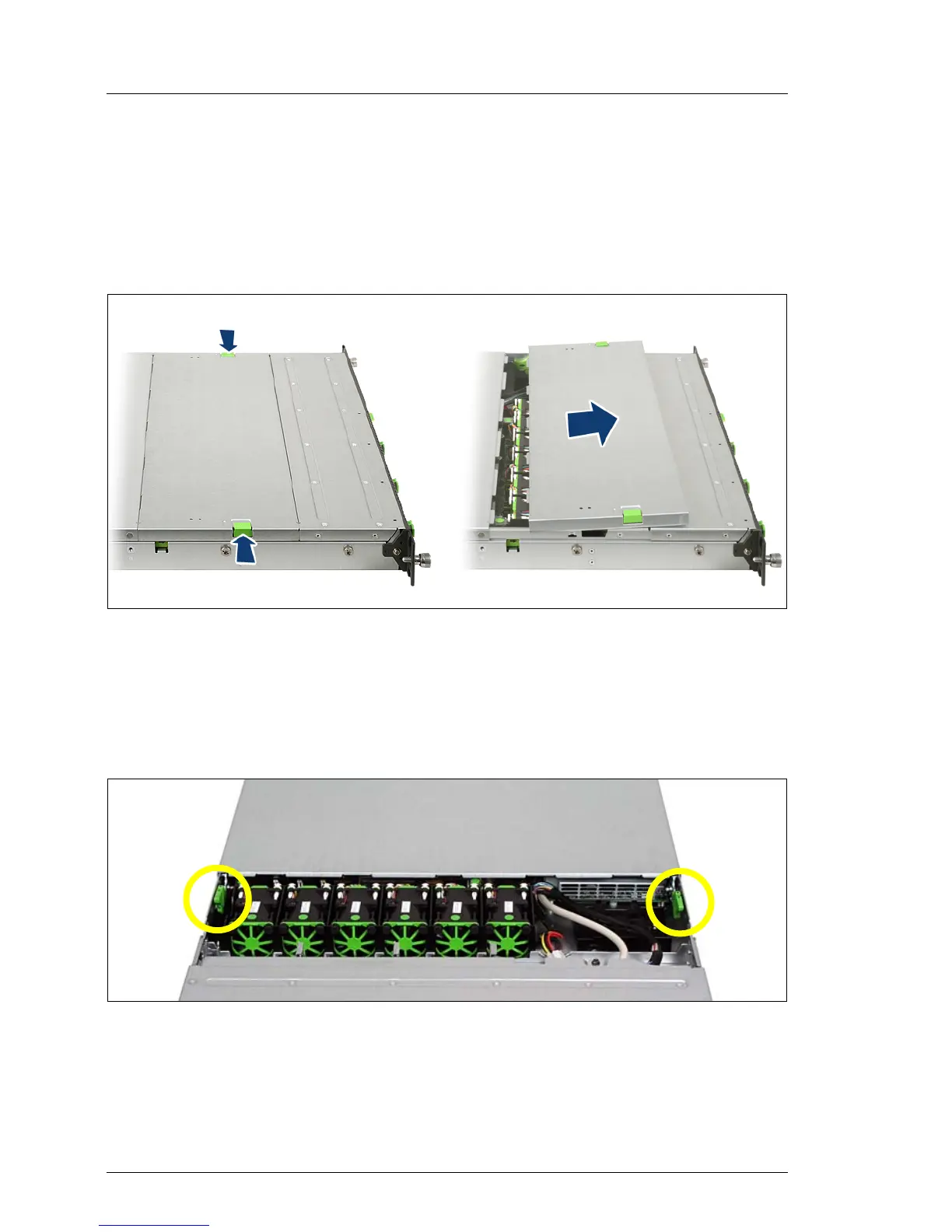

Figure 2: Opening the fan cover
Ê Push the two green buttons (1) in the direction of the arrow and lift the fan
cover upwards to remove it (2).
Removing the housing cover
Figure 3: Removing the housing cover
Ê Use the two green locking levers (see circles) to unlock the housing cover.
1
1
2
