Removing an existing DVD drive or dummy module
Ê Disconnect the DVD cable plug from the system board and from the HDD
backplane.

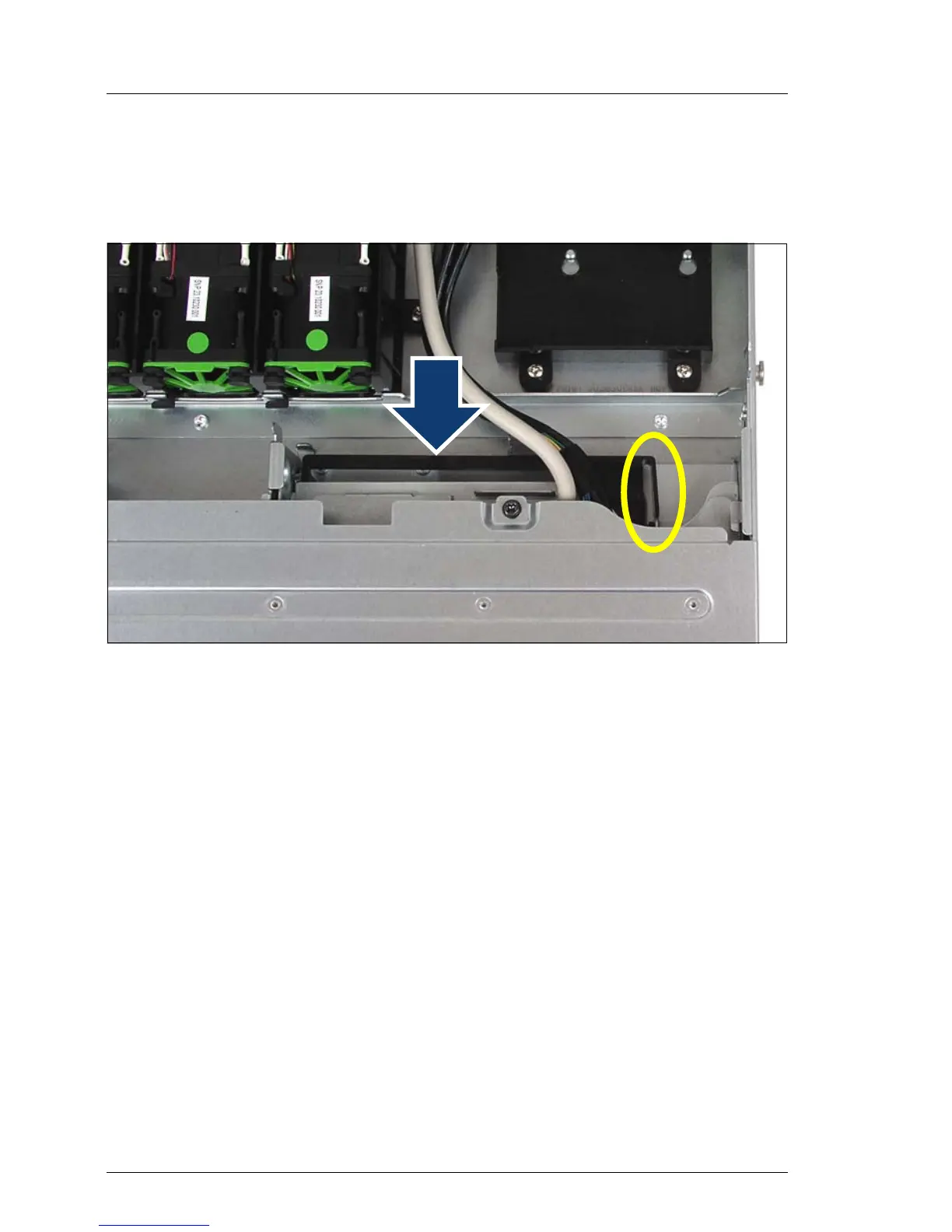

Figure 20: Removing the DVD drive or dummy module
Ê Remove the DVD drive module or dummy module by pushing it forward out
of the housing.
I In order to be able to push out the module, you must press the lock
on the side (see oval) sideways.
