46 Options Guide RX200 S5
HDD modules
© cognitas. Gesellschft für Technik-Dokumentation mbH 2009 Pfad: W:\Anwendungsdaten\FCT\tim_local\work\PICHOL\OBJ_DOKU-4105-001.fm
Inserting the HDD modules

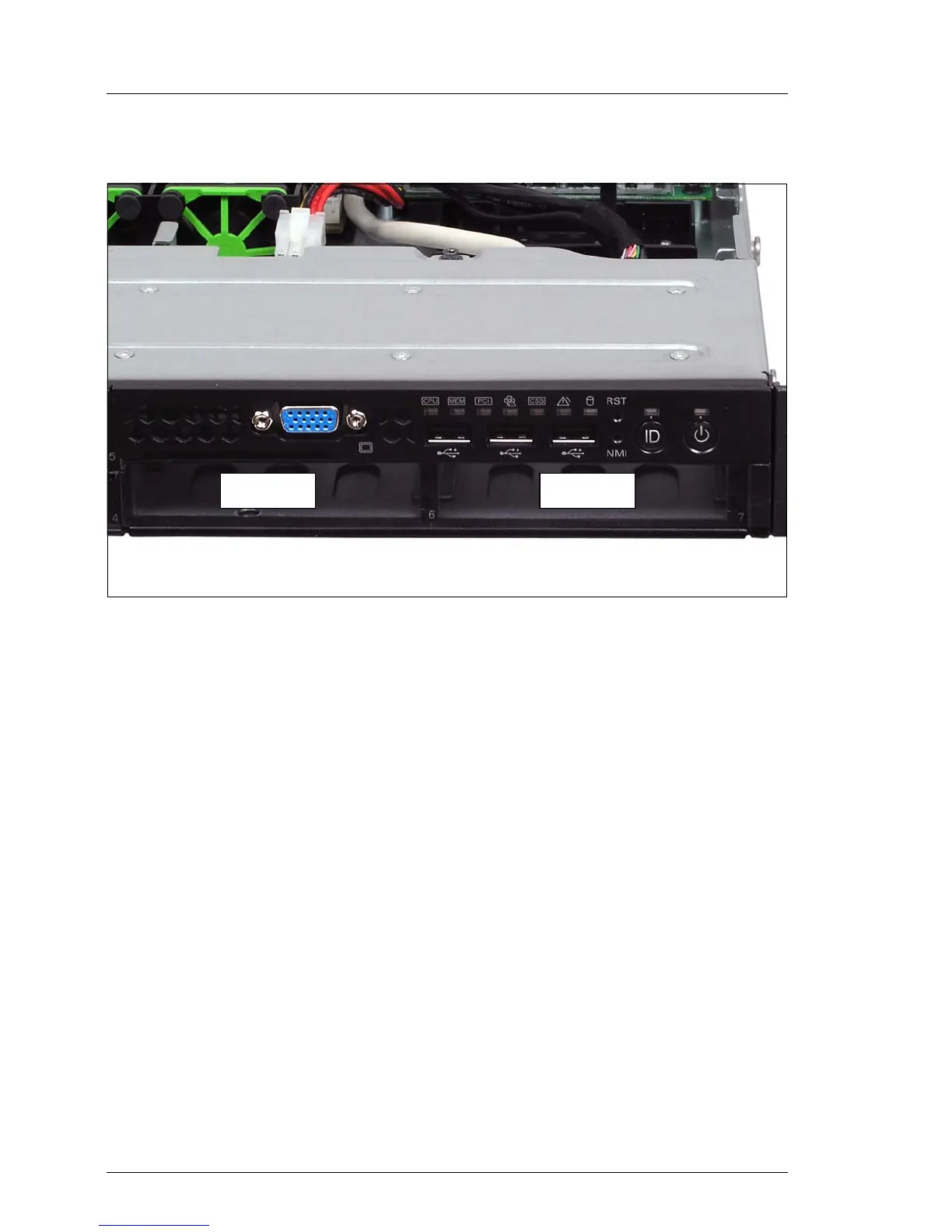

Figure 24: Installation positions of additional HDD modules
Ê Push the additional HDD modules into the two drives (left side = HDD #6,
right side = HDD #7) of the drive cage.
Ê Close the server, connect all power plugs to the power outlets, and switch on
the server as described in chapter “Completion” on page 61.
HDD #6 HDD #7
