50 Options Guide RX200 S5
Installing an expansion card in riser cards Expansion cards and iBBU
© cognitas. Gesellschft für Technik-Dokumentation mbH 2009 Pfad: W:\Anwendungsdaten\FCT\tim_local\work\PICHOL\OBJ_DOKU-4106-001.fm

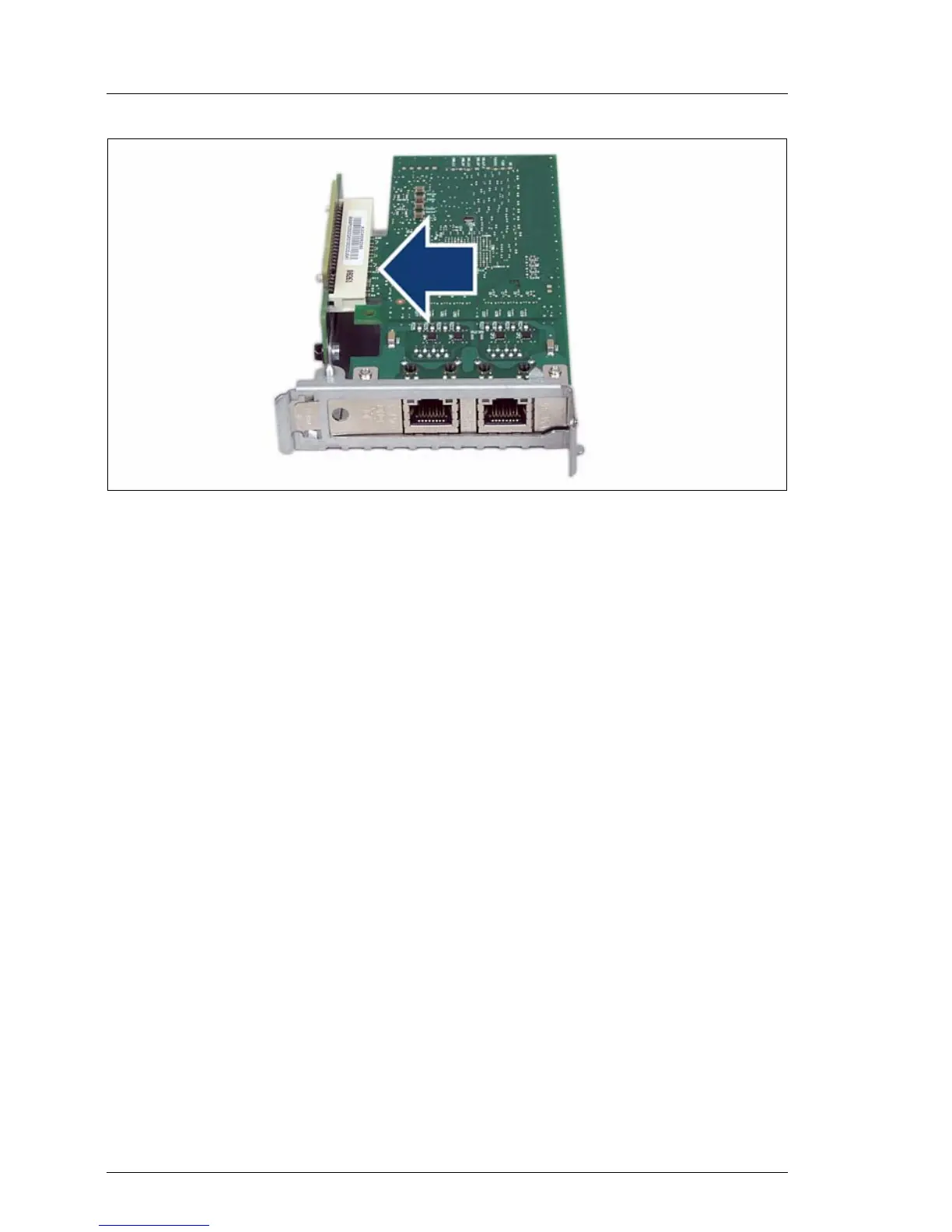

Figure 27: Riser card holder equipped with a controller
Ê Insert the board into the riser card holder of the same height.
I Make sure that the rear cover is positioned in the designated groove.
Ê If necessary, connect the cables to the expansion card and the other compo-
nents.
Reinstalling the riser card holders
Ê Position the riser card holder over the relevant slot on the system board.
Ê Carefully push the riser card holder into the slot by pressing on the green
points.
Ê Close the server, connect all power plugs to the power outlets, and switch on
the server as described in chapter “Completion” on page 61.
