RX200 S5 Options Guide 55
Expansion cards and iBBU Installing an iBBU

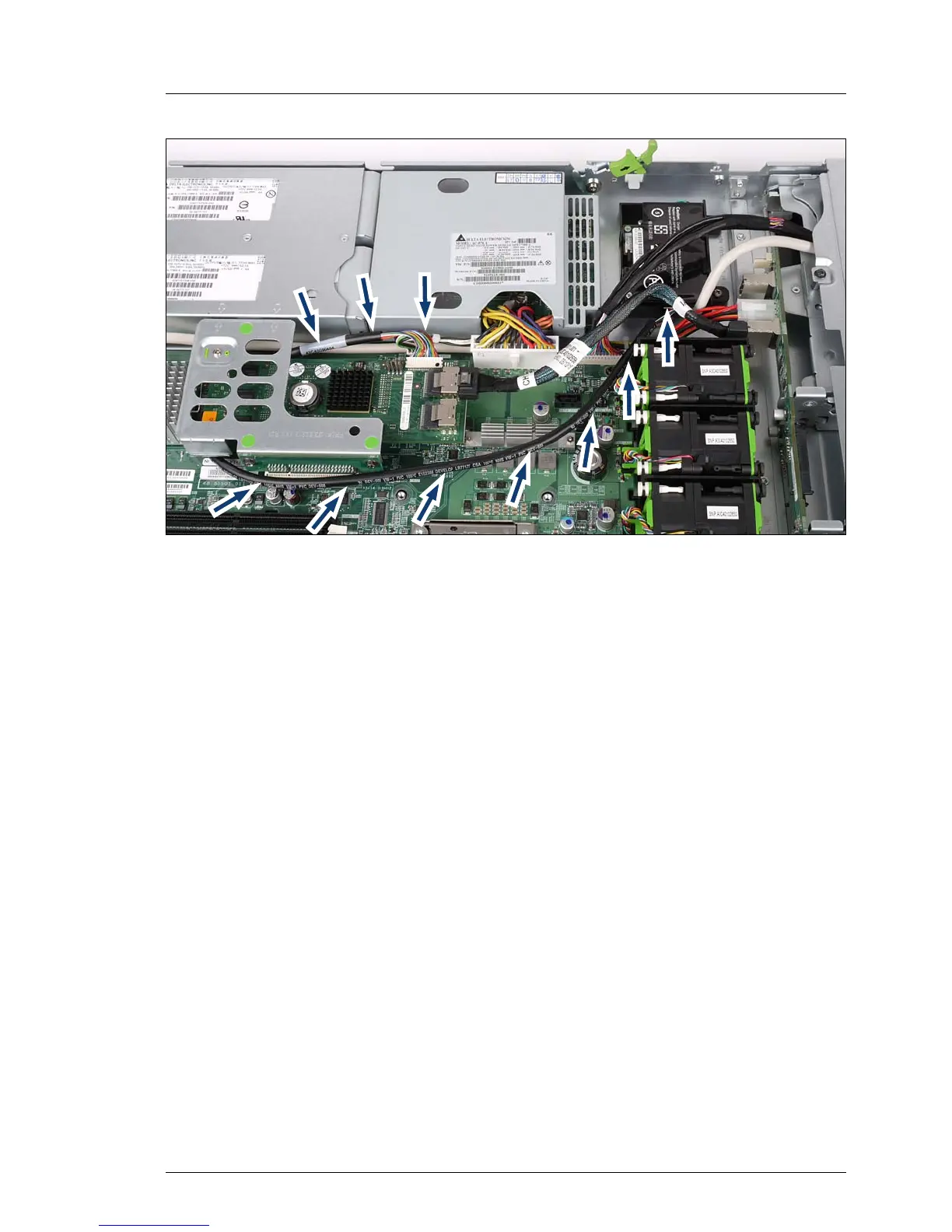

Figure 33: iBBU - Routing the cable
Ê Route the iBBU cable as shown.
I The iBBU cable must pass beneath the power cable that crosses the
iBBU cable.
