Fitting the air cowl Completion
© cognitas. Gesellschft für Technik-Dokumentation mbH 2009 Pfad: W:\Anwendungsdaten\FCT\tim_local\work\PICHOL\OBJ_DOKU-4109-001.fm
● The plastic pin of the air cowl must slot into the groove of the system board
(see circle):

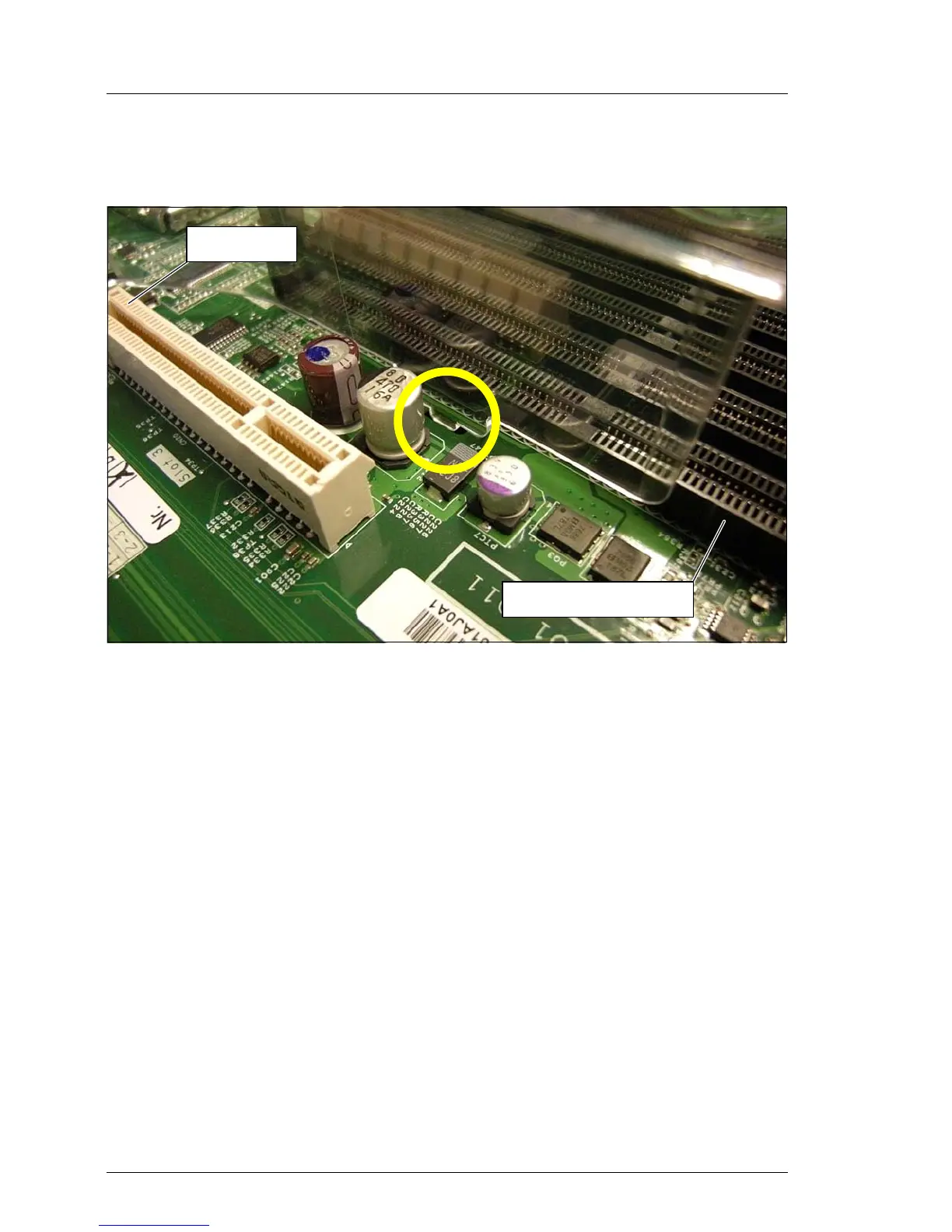

Figure 38: Position of the plastic pin of the air cowl
Slot #3
DIMM CPU #1
