RX2530 M5 Operating Manual 65

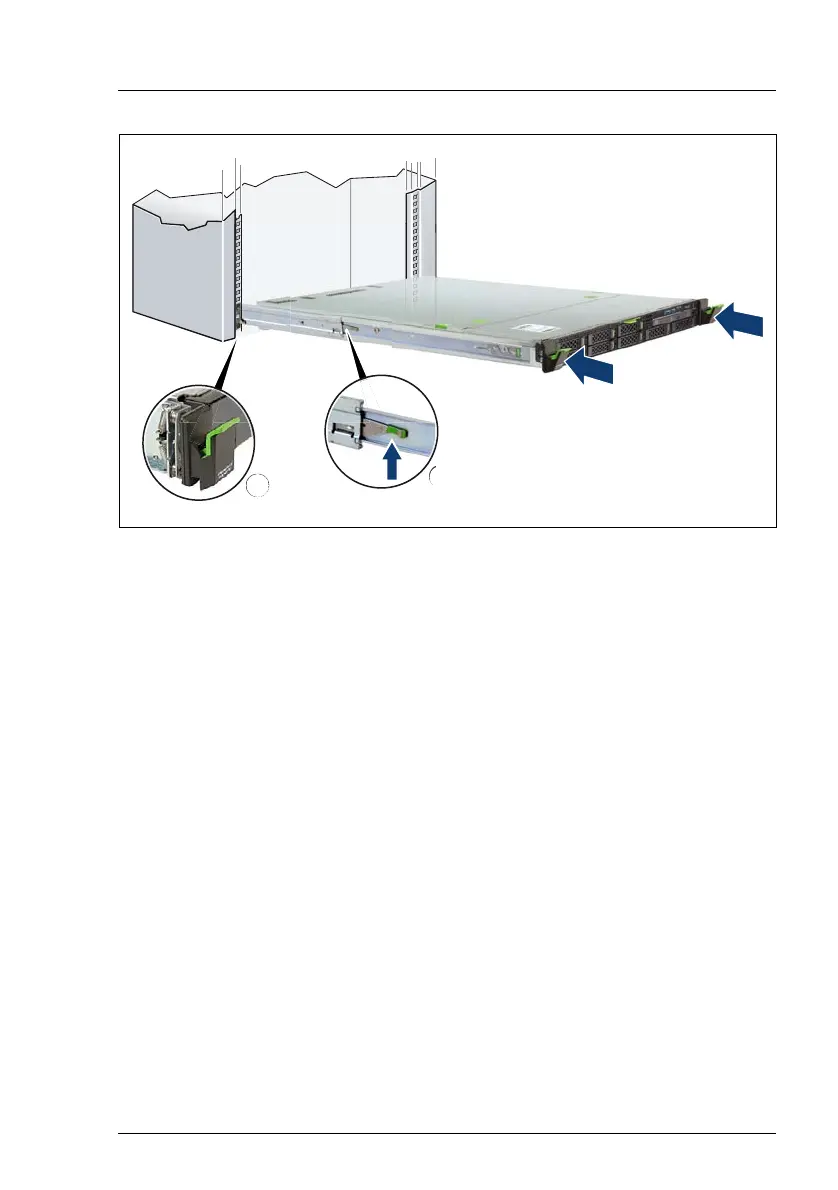

Figure 19: Sliding the server into the rack
Ê Release the locking mechanism of both rails (1).
Ê Push the server as far as it will go into the rack (2) until the quick-release
levers engage (3).
V CAUTION!
Be careful with your fingers. You can pinch them when the quick-
release levers change to the release position.
Ê Reconnect all cables except the power cord to the server rear.
햲
햴
햳
햳
