Fujitsu PRIMERGY RX2530 M5 User Manual

RX2530 M5 Operating Manual 71
Starting up
5.4.4.3 Connecting the power cord (DC PSU)
Example DC PSU -48 V
V CAUTION!
The DC PSU adjusts automatically to any power voltage in the range
from -40.5 V - -57 V. You may only operate the server if its rated voltage
range corresponds to the local mains voltage.

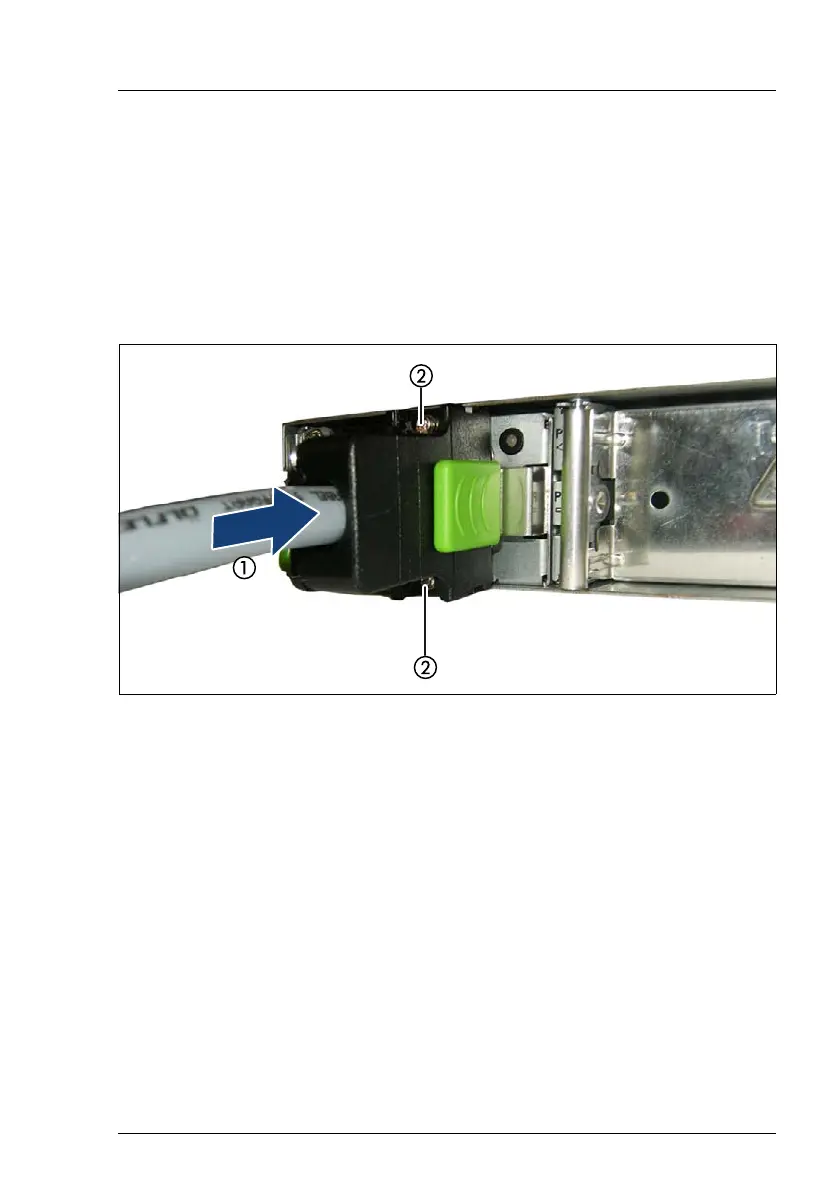

Figure 22: Connecting the server to the DC voltage - example DC PSU -48 V
Ê Connect the power cord to the PSU (1).
Ê Fasten the two screws (2).
Ê Ensure that the status indicator on the PSU is lit green, see section
"Indicator on hot-plug PSU" on page 42.
Ê If necessary, make a permanent connection to the distribution board.
V CAUTION!
If the server/rack is intended for permanent connection to the mains
only an authorized specialist (electrician) is allowed to work.
Please follow the regulation of each country.
I It will take about 60 seconds until the server can be powered on.

Fujitsu PRIMERGY RX2530 M5 Specifications

General

Tcase	78 °C
Scalability	2S
Processor cache	13.75 MB
Processor cores	10
Processor model	4210
System bus rate	- GT/s
Processor socket	LGA 3647 (Socket P)
Processor threads	20
Processor codename	Cascade Lake
Execute Disable Bit	Yes
Motherboard chipset	Intel® C624
Processor frequency	2.2 GHz
Processor cache type	L3
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	76.0 x 56.5 mm
Processor boost frequency	3.2 GHz
Processor operating modes	64-bit
Supported instruction sets	AVX-512
Thermal Design Power (TDP)	85 W
Number of processors installed	1
Maximum number of SMP processors	2
Maximum number of PCI Express lanes	48
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
Maximum internal memory supported by processor	1024 GB
HDD size	- \
RAID levels	0, 1
HDD interface	-
Optical drive type	No
Supported HDD sizes	2.5 \
Total storage capacity	0 GB
Maximum storage capacity	- TB
Number of HDDs installed	0
Number of HDDs supported	8
Supported storage drive interfaces	SAS, Serial ATA
Chassis type	Rack (1U)
Product color	Black, Silver
BIOS type	UEFI
Compatible operating systems	Microsoft Hyper-V Server 2016 Microsoft Windows Server 2016 Datacenter Microsoft Windows Server 2016 Standard Microsoft Windows Server 2016 Essentials Microsoft Windows Storage Server 2016 Standard Microsoft Hyper-V Server 2012 R2 Microsoft Windows Server 2012 R2 Datacenter Microsoft Windows Server 2012 R2 Standard Microsoft Windows Server 2012 R2 Essentials Microsoft Windows Server 2012 R2 Foundation Microsoft Windows Storage Server 2012 R2 Standard VMware vSphere 6.5 VMware vSphere 6.0 SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 11 Red Hat Enterprise Linux 7 Red Hat Enterprise Linux 6 Oracle Linux 7
Memory slots	24x DIMM
Internal memory	16 GB
Memory clock speed	2666 MHz
Maximum internal memory	3072 GB
Cabling technology	10/100/1000Base-T(X)
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 85 %
Certification	CB, RoHS, WEEE, GS, CE, CSAc/us, FCC Class A, ICES-003 / NMB-003 Class A, VCCI:V3 Class A + JIS 61000-3-2, EAC, KC, CCC, RCM, BIS R41004006
PCI Express slots version	3.0
PCI Express x16 (Gen 3.x) slots	3
Power supply	800 W
On-board graphics card model	Not available
Processor ARK ID	193384
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	770.7 mm
Width	483 mm
Height	43 mm
Weight	16000 g
