5.4.3 Connecting the liquid cooling (LC) to the external
cooling environment (special release)
I A LC configuration is provided on special release request only.
The quick connectors to connect the LC to the server system are on the rear of
the server.

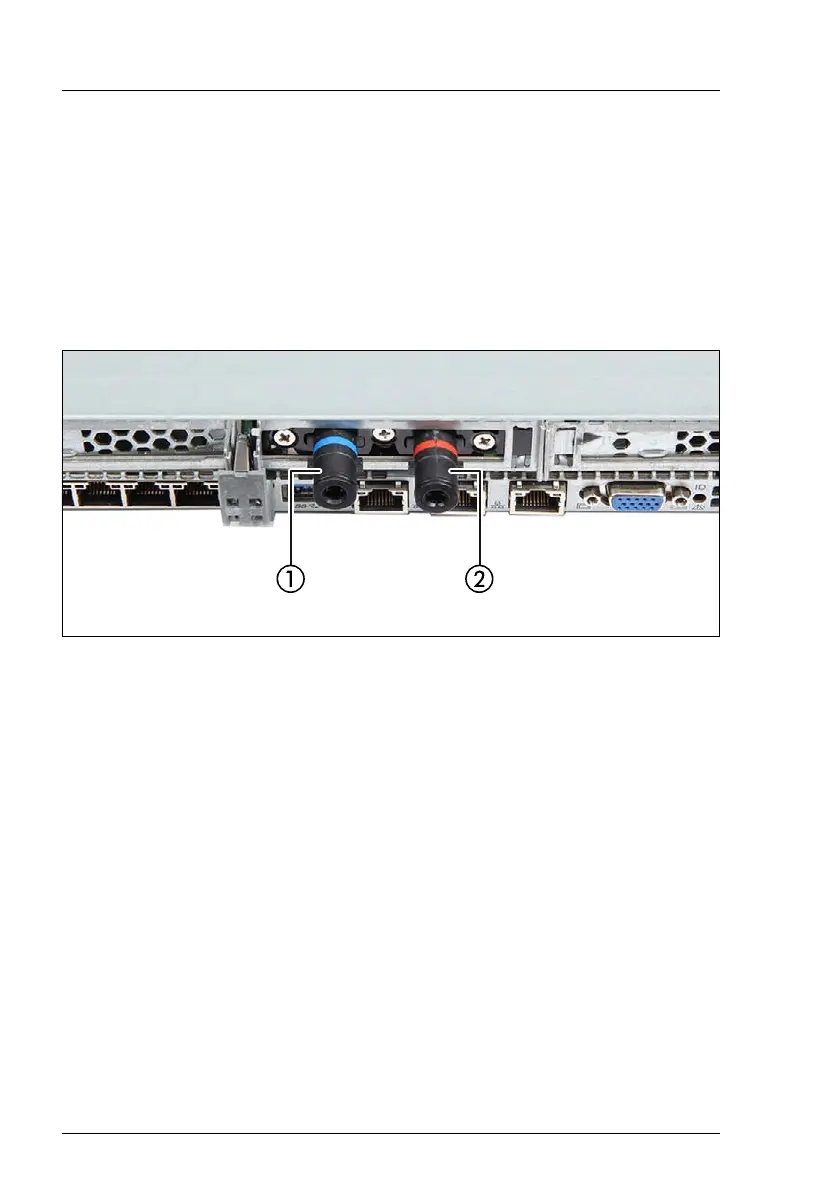

Figure 20: Quick connectors for LC
Ê If applicable, remove both orange protective caps from the quick connectors
(not visible here).
Ê Connect the liquid inlet to the quick connector with the blue marking (1).
Ê Connect the liquid outlet to the quick connector with the red marking (2).
