RX2530 M5 Operating Manual 83
6.2.1.2 Installing a 3.5-inch HDD module

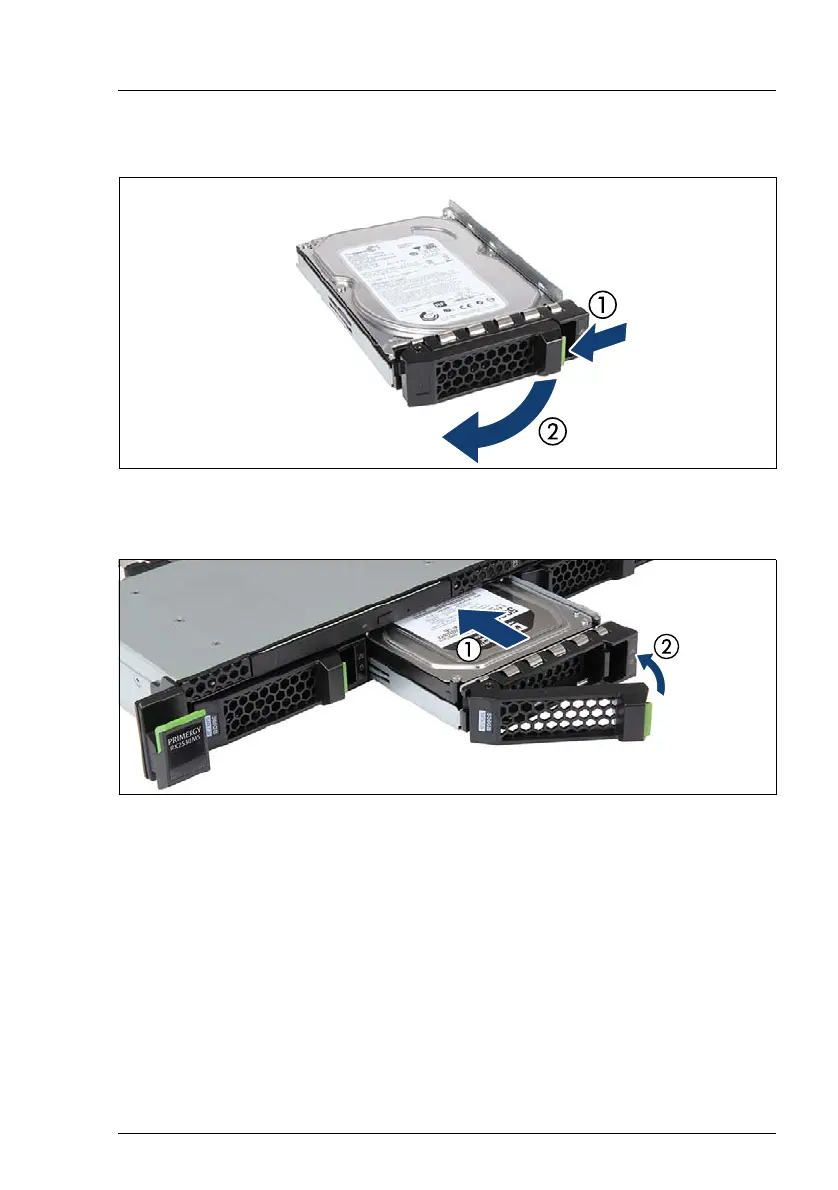

Figure 25: Opening the 3.5-inch HDD module locking lever
Ê Pinch the green locking clip (1) and open the locking lever (2).
Figure 26: Installing the 3.5-inch HDD module
Ê Insert the HDD module into a drive bay and carefully push back as far as it
will go (1).
Ê Close the locking lever to lock the HDD module in place (2).
Ê When using a RAID array, add the additional HDD/SSD to the RAID array.
I Configuring the RAID array, see the documentation of the RAID
controller, used in your configuration, see section "Documentation
overview" on page 13.
