6.2.2.2 Installing a 2.5-inch HDD/SSD module

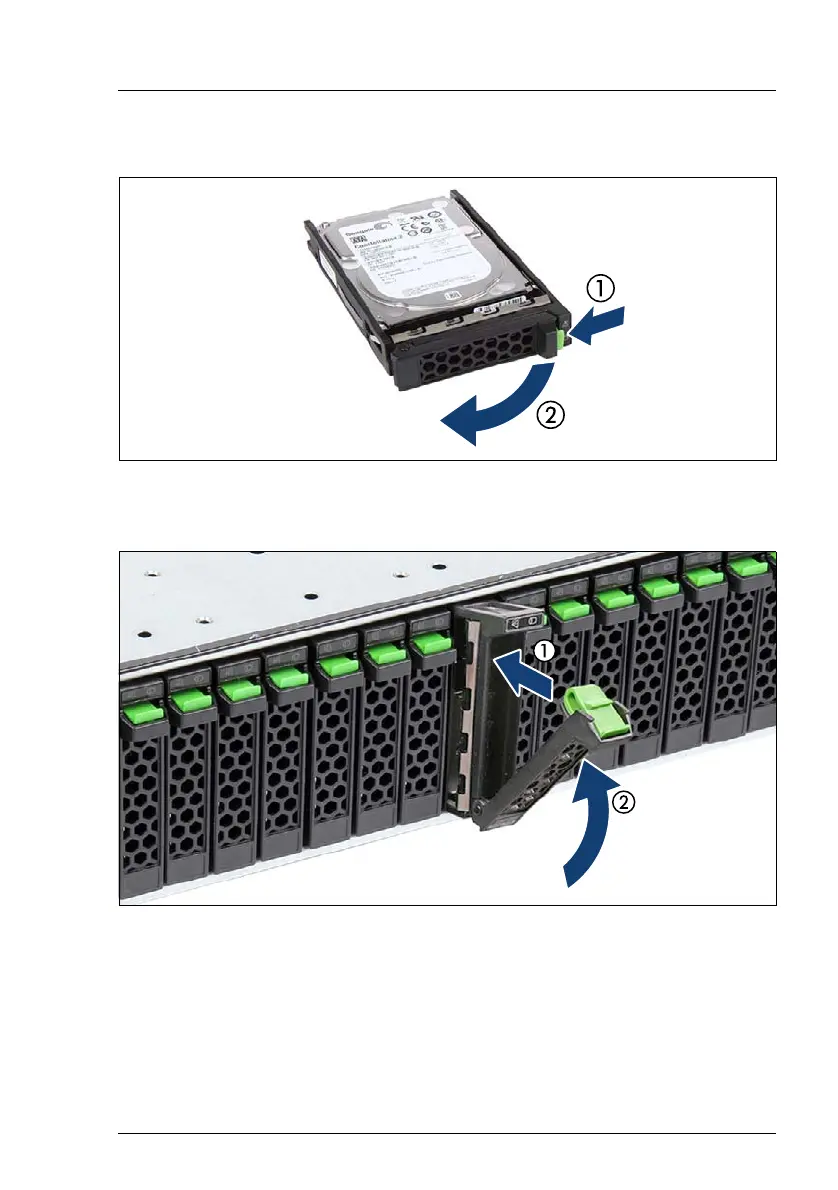

Figure 31: Opening the 2.5-inch HDD/SSD module locking lever
Ê Pinch the green locking clip (1) and open the locking lever (2).
Figure 32: Installing the 2.5-inch HDD/SSD module
Ê Insert the HDD/SSD module into a drive bay and carefully push back as far
as it will go (1).
Ê Close the locking lever to lock the HDD/SSD module in place (2).
