28 Operating Manual RX2540 M5
3.3.1.2 Server rear

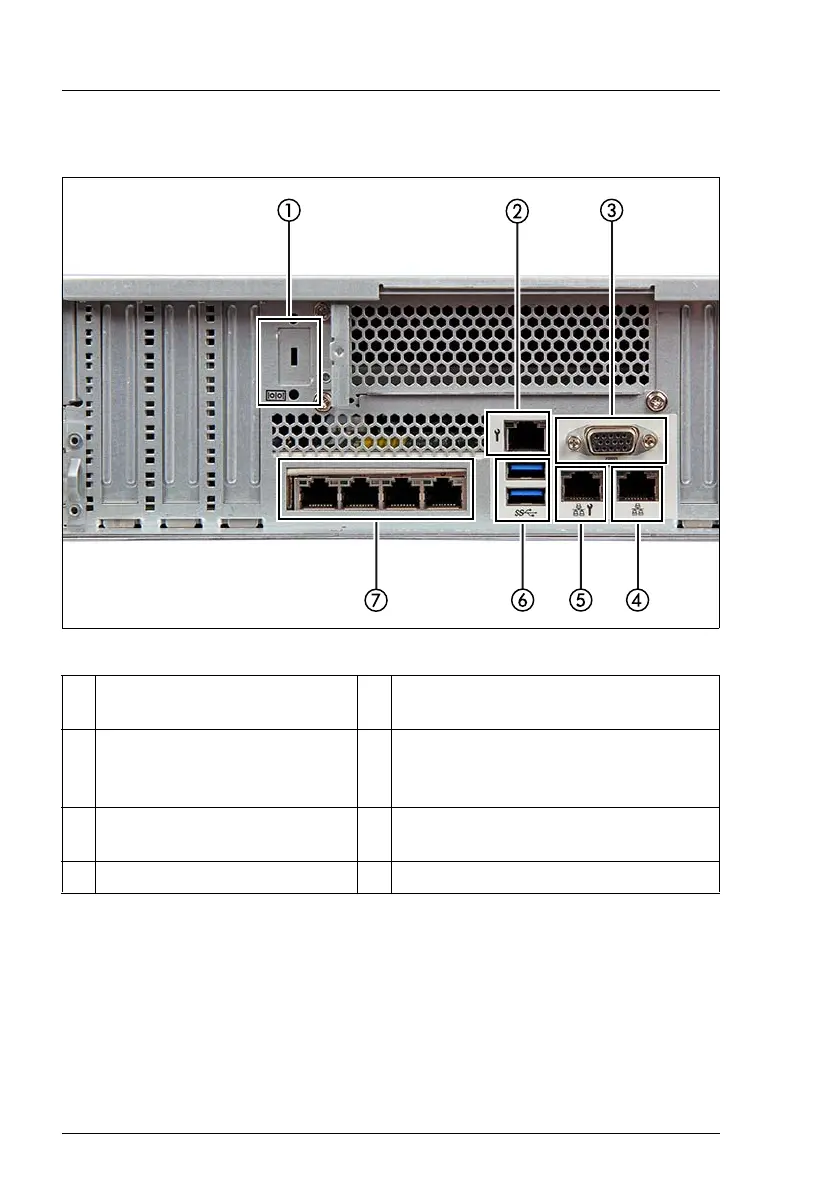

Figure 8: Connectors on the server rear
The corresponding indicators are explained in section "Indicators on the server
rear" on page 38.
1 Serial connector COM1
(optional)*
5 Shared LAN connector (LAN1)
2 Management LAN connector
(for iRMC S5 server
management function)
6 2x USB 3.0 connectors
3 Video connector (VGA) 7 OCP module (optional, different
variants)
4 LAN connector (LAN2)
* The serial connector can be used as the standard interface or
for
c
ommunication with iRMC.
