RX2540 M5 Operating Manual 89
6.3.2 Installing a PSU

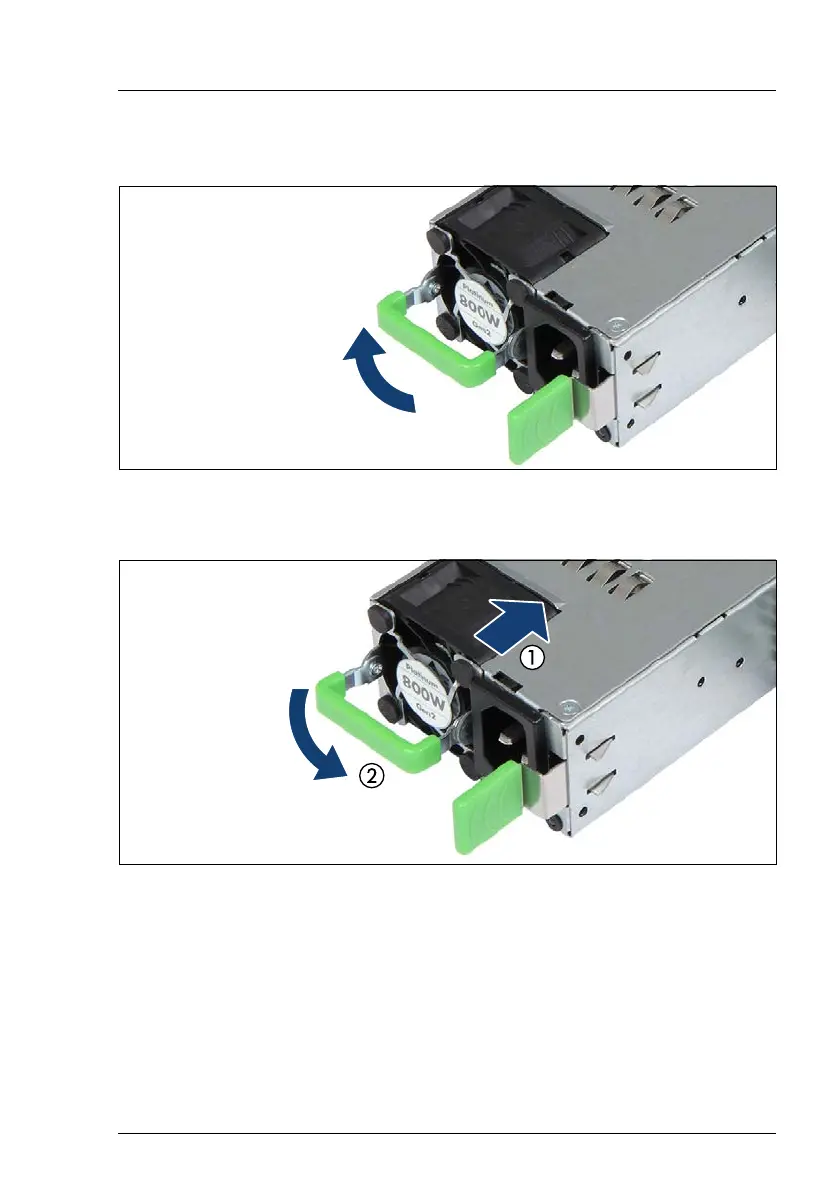

Figure 34: Folding up the handle
Ê Push the handle of the PSU halfway upward in the direction of the arrow.
Figure 35: Installing a PSU
Ê Push the PSU into its bay (1) as far as it will go until the release latch snaps
in place.
Ê Fold down the handle on the PSU (2).
I Ensure that the PSU engages correctly in the bay and is locked in
position. This is the only way to prevent the PSU from sliding out of its
bay and being damaged during transportation.
