Operating Manual
T
X120
S
3
Hardware inst
allation
Placing the server on the st
abilizers

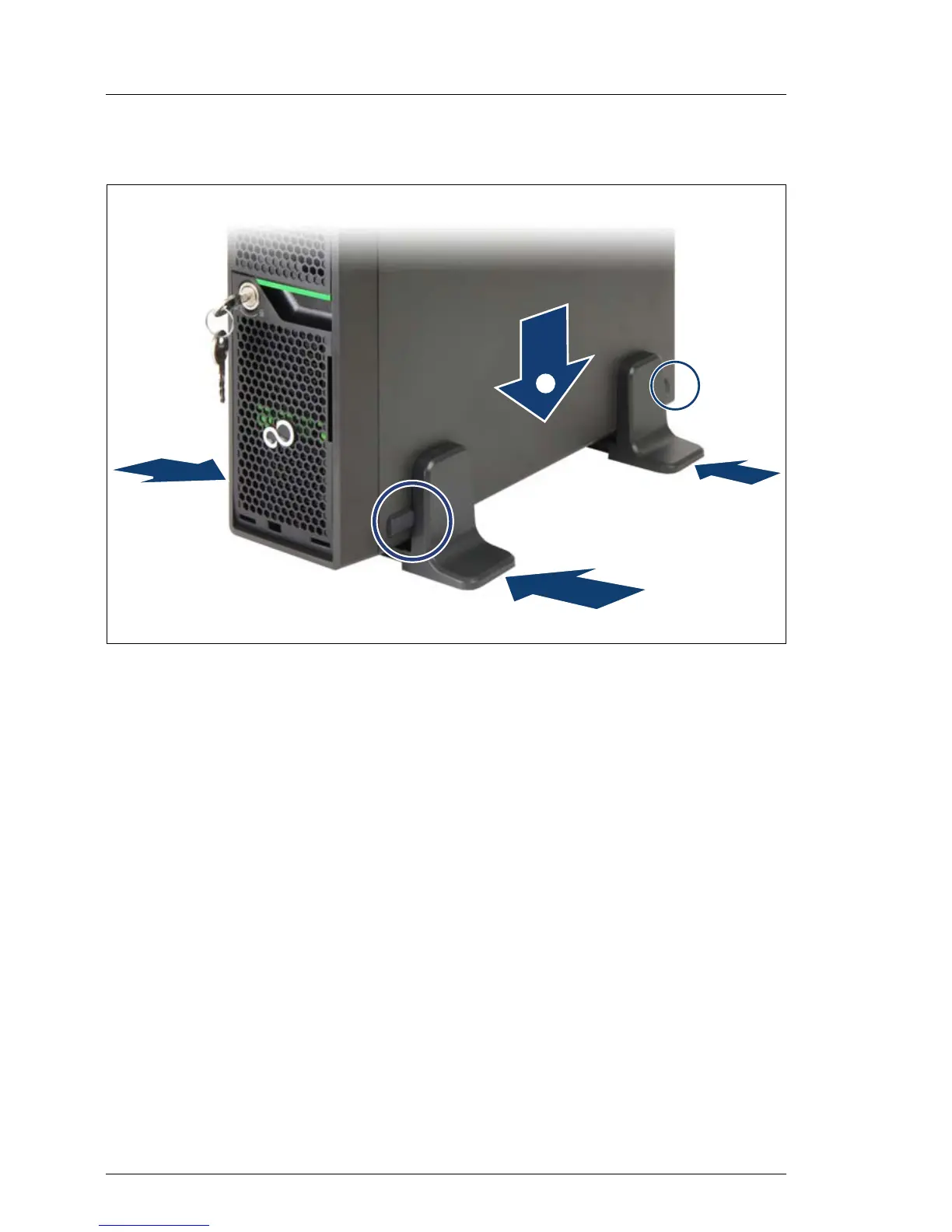

Figure 4: Placing the s
erver on stabilizers
Ê
Place the server on the s
t
abilizers
(1).
Position the st
abilizers between the rubber feet
(2).
Ê
Press the stabilizers together
(3).
0
0
1
1
1
/
