6.3 Controls and indicators
6.3.1 Front of server

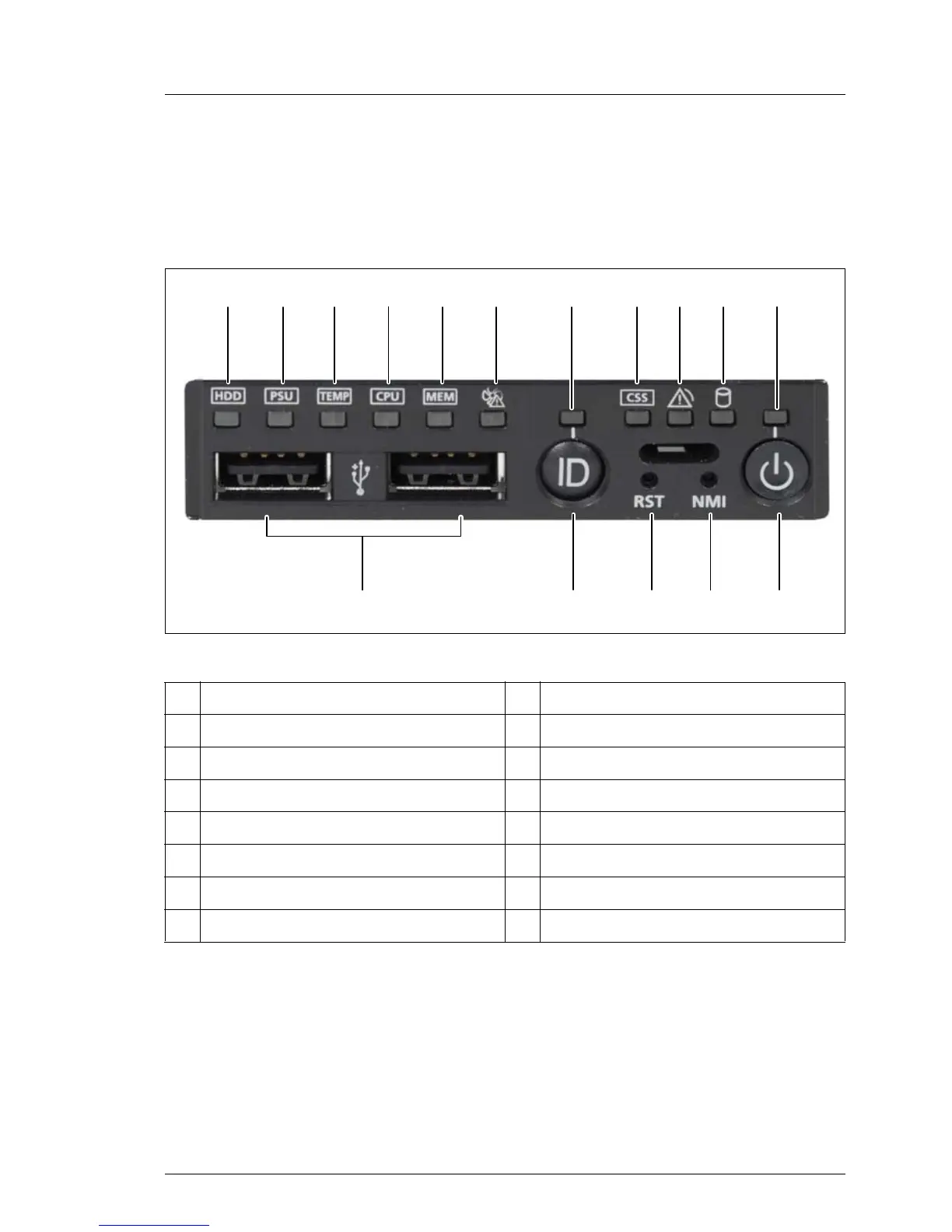

Figure 13: Front side (indicators and controls)
I The meaning of the local diagnotsic indicators (1) - (6) is discribed in the
"PRIMERGY TX120 S3 Upgrade and Maintenance manual".
1 HDD error indicator 9 Global Error indicator
2 PSU error indicator 10 HDD / SSD activity indicator
3 Temperature error indicator 11 Power-on indicator
4 CPU error indicator 12 On/Off button
5 Memory error indicator 13 NMI button
6 Fan error indicator 14 Reset button
7 ID indicator 15 ID button
8 CSS indicator 16 2 USB connectors
0 7 854321 6 9
:
;<=? >
