56 Operating Manual TX120 S3
Starting up and operation

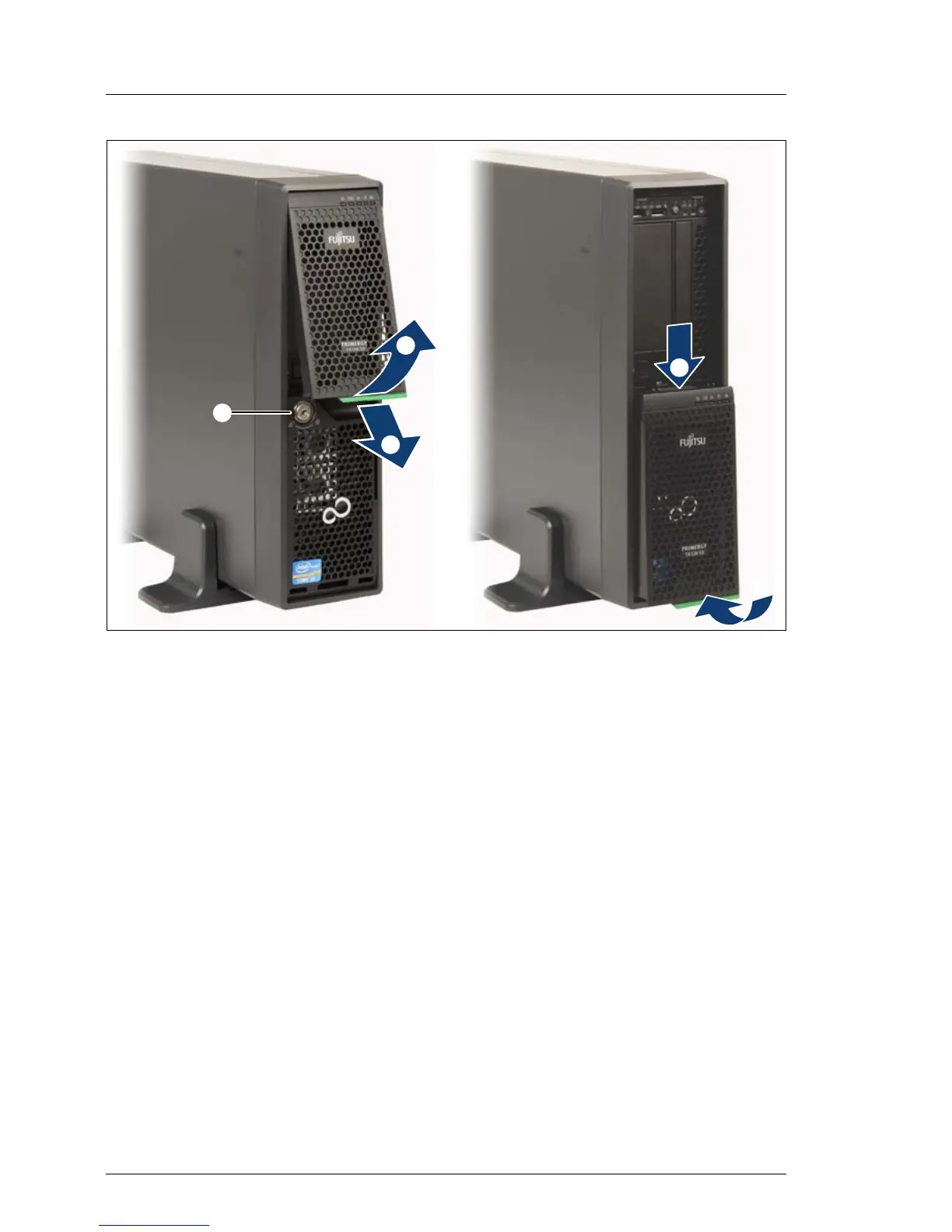

Figure 10: Opening the drive cover
Ê Turn the key clockwise (1) and remove the key.
Ê Open the drive cover carefully in the direction of the arrow (2) until the
ratches of the cover are released, and pull it downward to remove it (3).
V CAUTION!
Do not pull too hard to avoid damage to the locking mechanism.
Ê Attach the drive cover to the
convexes on the HDD cover (4).
Ê Push down the HDD cover in the direction of the arrow (5).
I Please note the following when operating with tape drives:
If the system is programmed to eject the media automatically, the
accessible drives must not be obstructed.
The drive cover is replaced and the server locked in the reverse order.
