U41604-Z156-1-76 Options Guide 27
Accessible drives Installing an accessible 5.25-inch drive
Ê Attach the front cover or rack front cover, close the server, connect it to the
power outlet, and switch it on as described in the chapter “Completion” on
page 59 et seqq. .
You will find in the following figures which holes and screws should be used for
the magnetic tape dives.

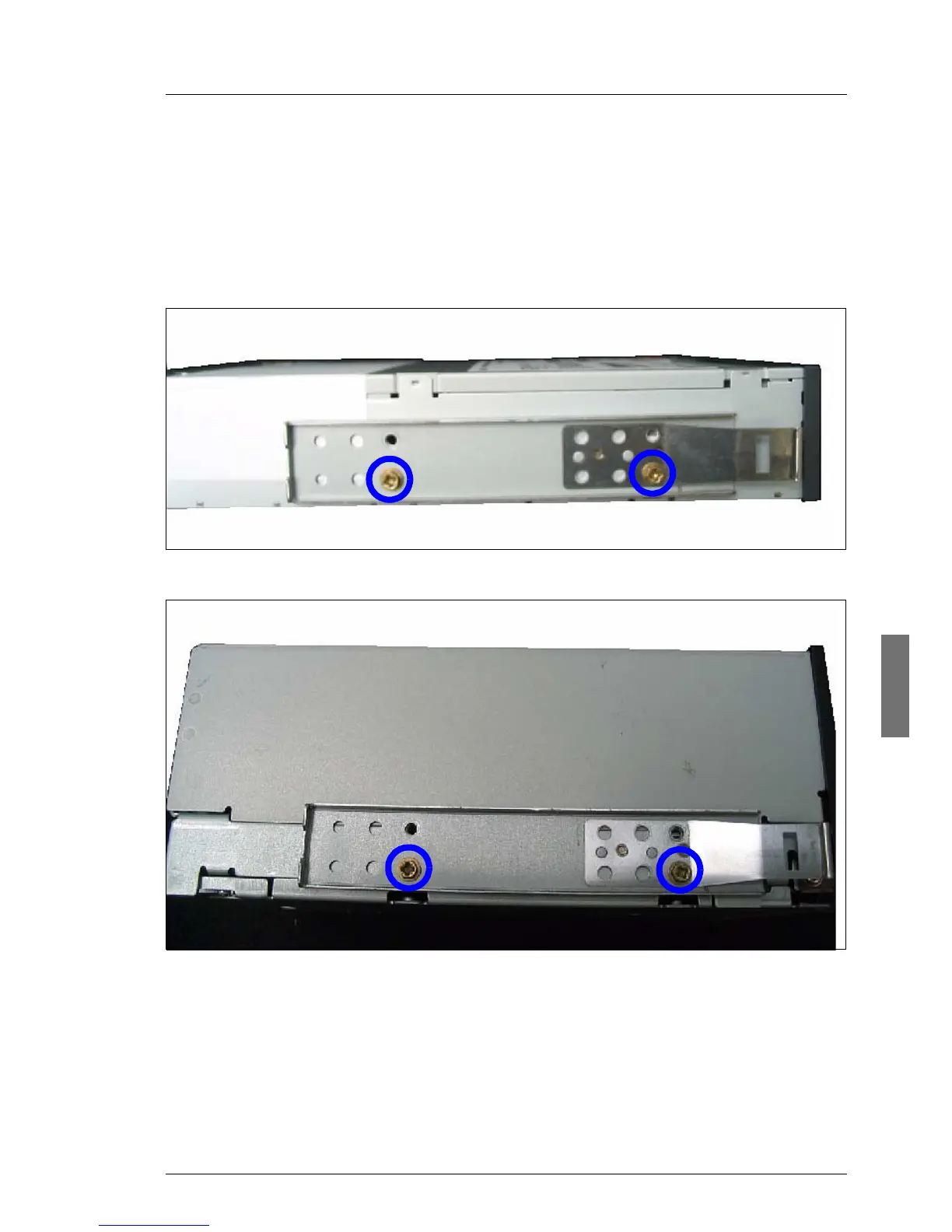

Figure 17: Attaching the EasyClick rails - magnetic tape drive LTO Ultrium 1HH
Figure 18: Attaching the EasyClick rails - magnetic tape drive LTO Ultrium 2FH
