7 Controller in the PCI slots
V CAUTION!
Observe the safety instructions in the chapter “Safety notes” on page 7
et seqq. .
The system board offers six PCI slots: 2 x PCI-X (64 Bit / 66 MHz), 3 x PCI (32
Bit / 33 MHz) and 1 x PCI-Express x1 slot.
The PCI slot 2 is prepared for Zero Channel RAID (ZCR).

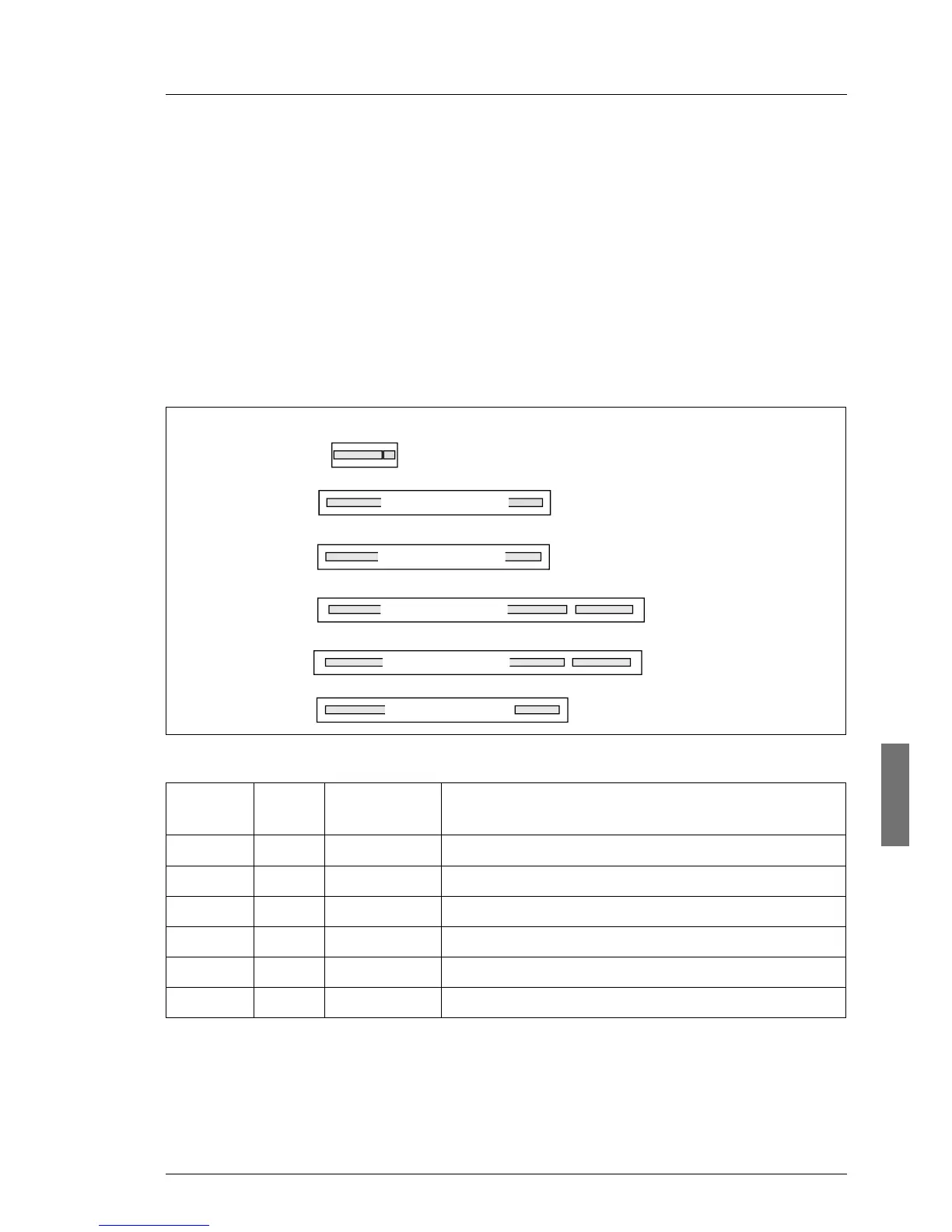

Figure 22: Numbering of the PCI slots
For more information see the Technical Manual of the system board D1979.
PCI slot 64Bit/
32Bit
Frequency
in MHz
Description
1 32 Bit 33 32-Bit PCI bus slot
2 64 Bit 66 64-Bit PCI X bus slot, prepared for ZCR
3 64 Bit 66 64-Bit PCI X bus slot
4 32 Bit 33 32-Bit PCI bus slot
5 32 Bit 33 32-Bit PCI bus slot
6 PCIe x1 bus slot
PCI Slot 5
PCI Slot 4
PCI Slot 1
PCI Slot 2
PCI Slot 3
PCIe Slot 6
