U41604-Z156-1-76 Options Guide 53
11 Converting from the floorstand
model to the rack model
V CAUTION!
Observe the safety instructions in the chapter “Safety notes” on page 7
et seqq. .
Ê Open the server and remove the front cover as described in the chapter
“Preparation” on page 13ff.
I The front cover is no longer required.

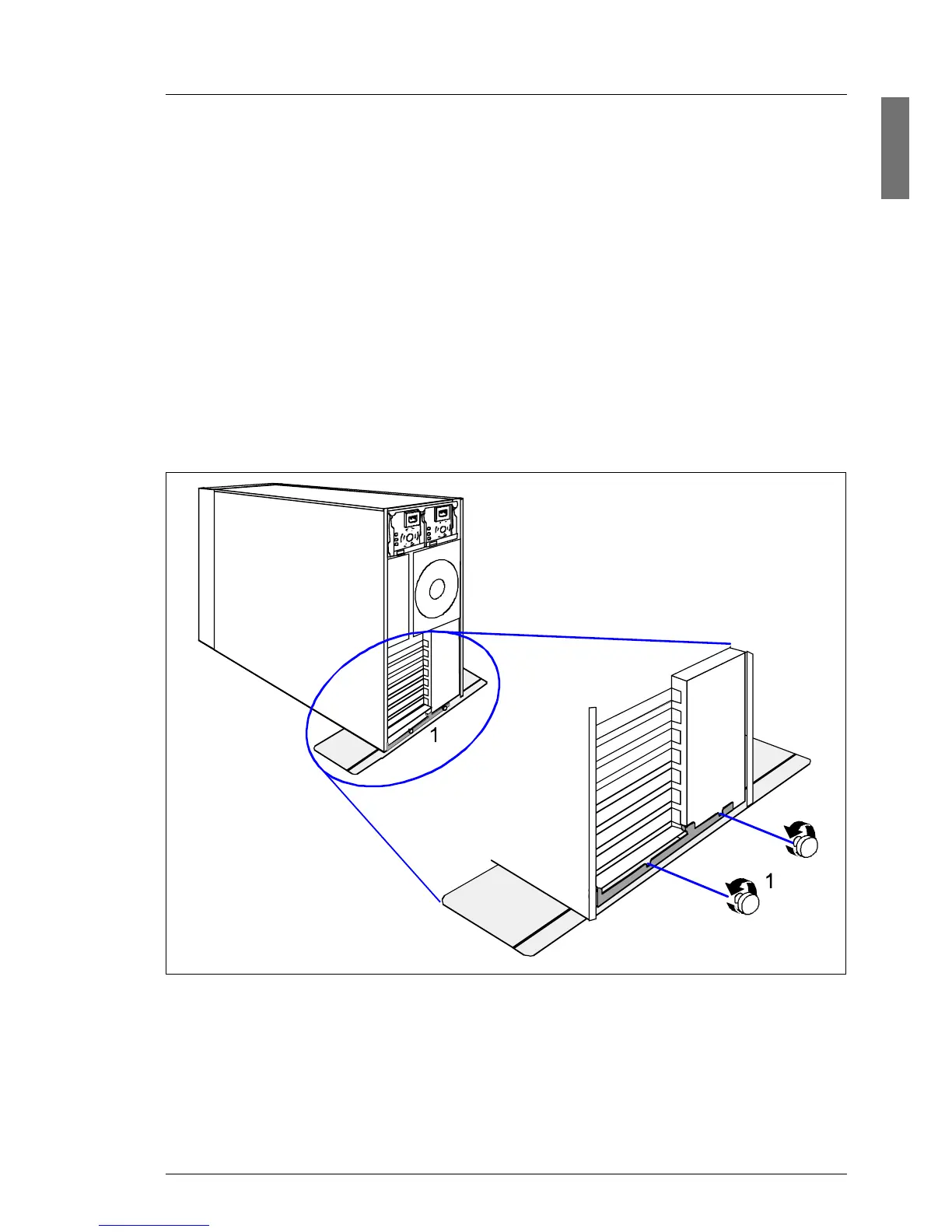

Figure 40: Removing the anti-tilt bracket
Ê If your server is equipped with an anti-tilt bracket, remove it:
Ê Remove the two knurled screws (1) and lift the server out of the anti-tilt
bracket.
