54 Options Guide U41604-Z156-1-76
Converting from the floorstand model to the rack model
The right-hand side cover and the top cover build one part.

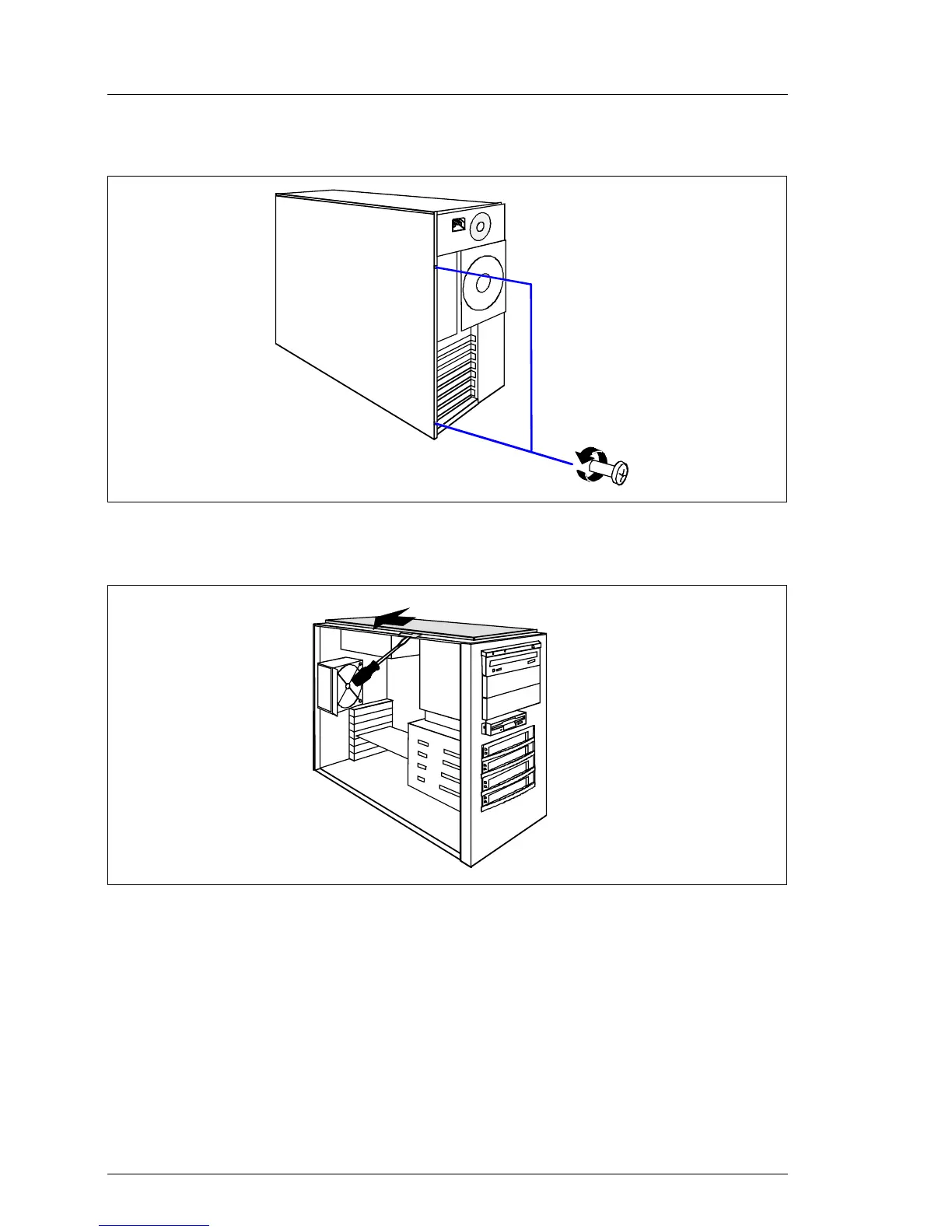

Figure 41: Removing the screws
Ê Remove the two screws at the rear side.
Figure 42: Removing the right-hand side cover
Ê Lift the hook up slightly using a screwdriver.
Ê Push the right-hand side cover in the direction of the arrow.
Ê Lift off the right-hand side cover.
I The right-hand side cover is no longer required.
1
