30 Options Guide U41604-Z156-1-76
Installing the hard disks extension box Accessible drives

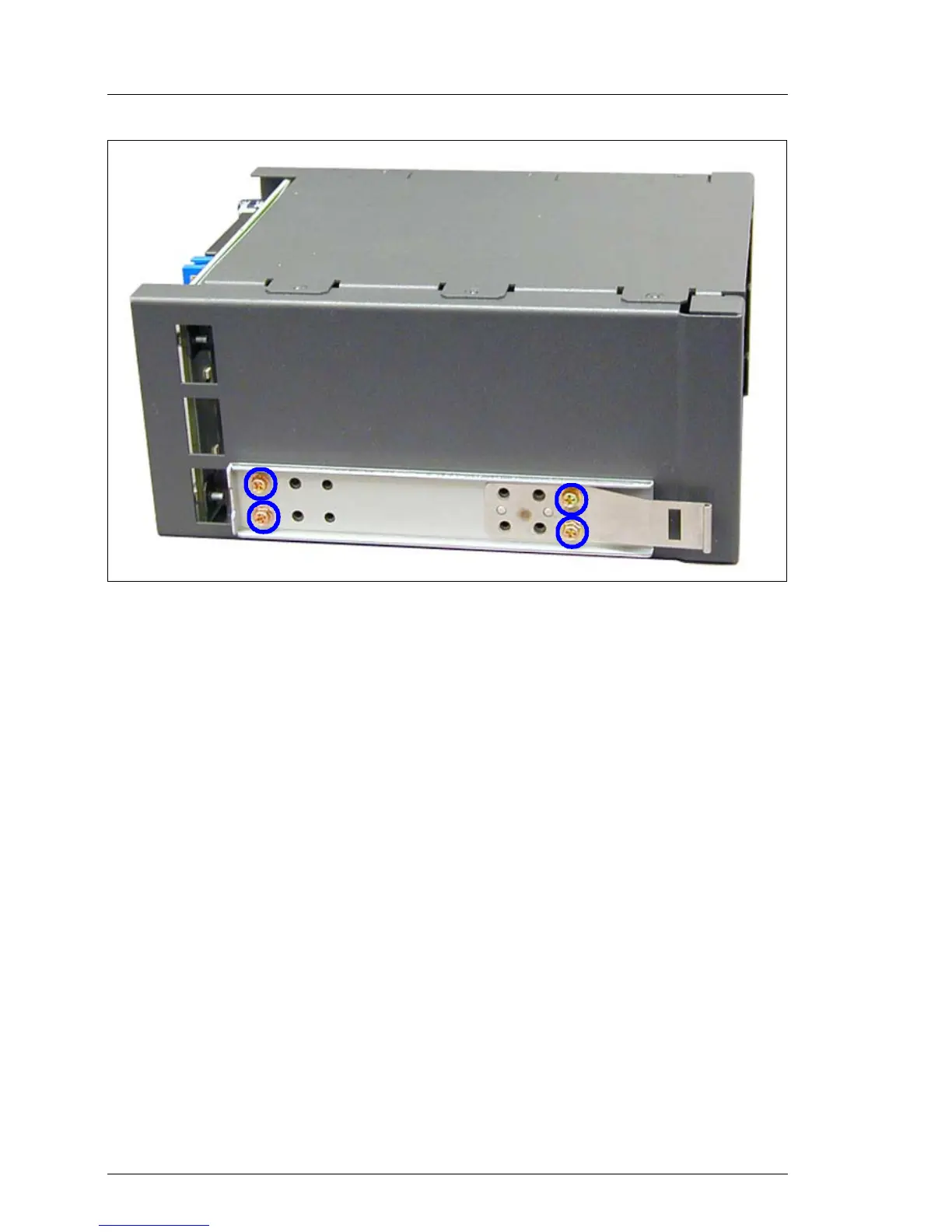

Figure 21: Attaching the EasyClick rails
Ê Screw the EasyClick rails onto either side of the hard disks extension box
using four M3 screws for each rail. Use the holes marked above for this
purpose.
Ê Push the hard disks extension box fully into the bay until the EasyClick rails
latch in place.
Ê Connect the power cable plug P2 to the hard disks extension box.
Ê Connect the SCSI cable T26139-Y3927-V1 included in the conversion kit to
the SCSI connector on the HDD extension box.
Ê Connect the I
2
C cable (T26139-Y3718-V601) with the I²C bus connector of
the HDD extension box..
Ê Secure the I
2
C cable with a green clamp.
Ê Route the SCSI cable and connect it to the SCSI connector on the 1- or
2-channel RAID controller.
Ê Attach the front cover or rack front cover, close the server, connect it to the
power outlet, and switch it on as described in the chapter “Completion” on
page 59 et seqq. .
