U41604-Z156-1-76 Options Guide 51
Conversion standard PS to hot-plug PS

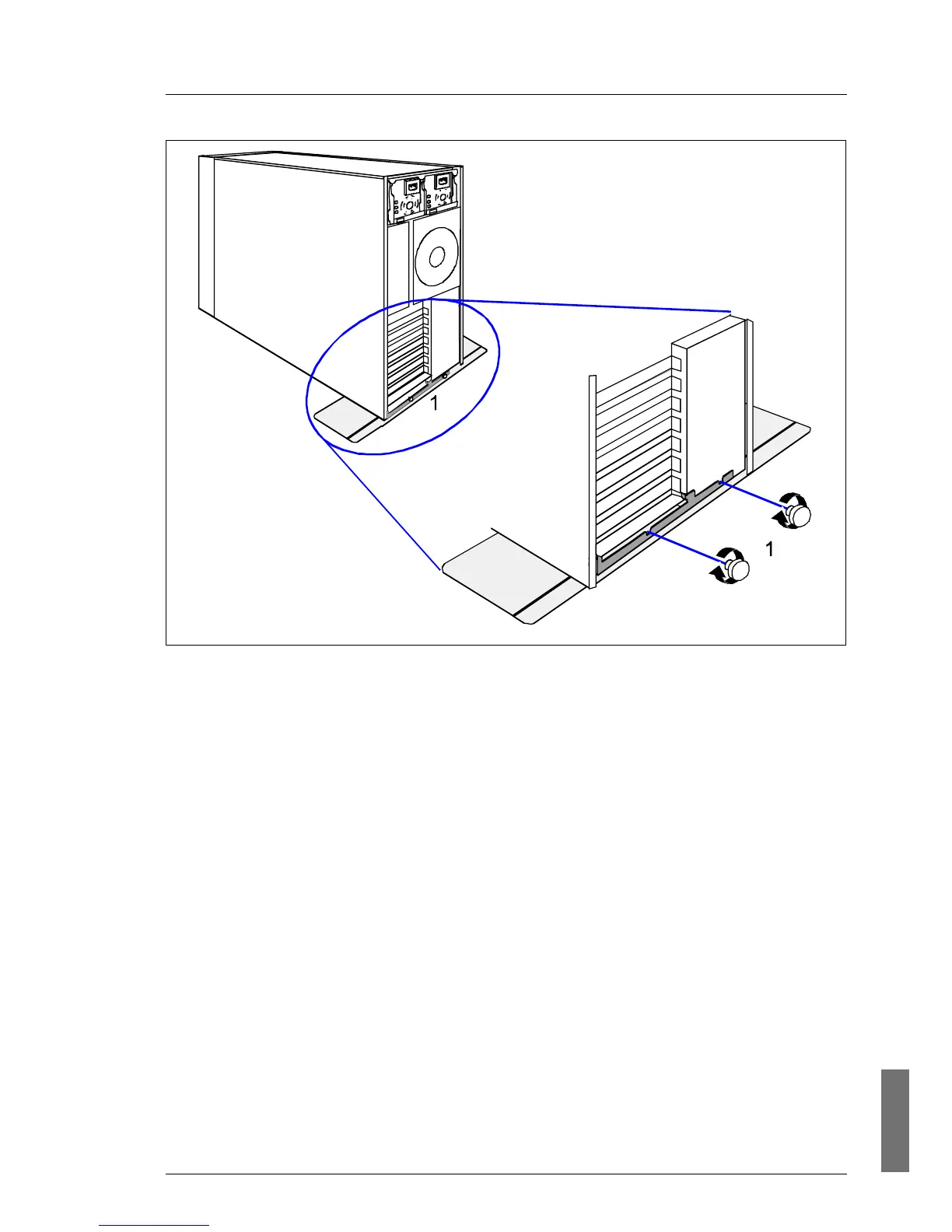

Figure 39: Fastening the anti-tilt bracket
Ê Fasten the anti-tilt bracket using the two knurled screws (1).
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter “Completion” on page 59 et seqq. .
V CAUTION!
After installing the hot-plug power supply the SDR (sensor data record)
data base must be updated. For this sequence you need the BIOS flash
diskette prepared before. This diskette contains the newest BIOS
version, the BMC firmware and the SDR data.
I You will find the description of the indicators of the power supply module
in the Operating Manual for the PRIMERGY TX150 S3.
