68 Options Guide U41604-Z156-1-76
Cabling Appendix

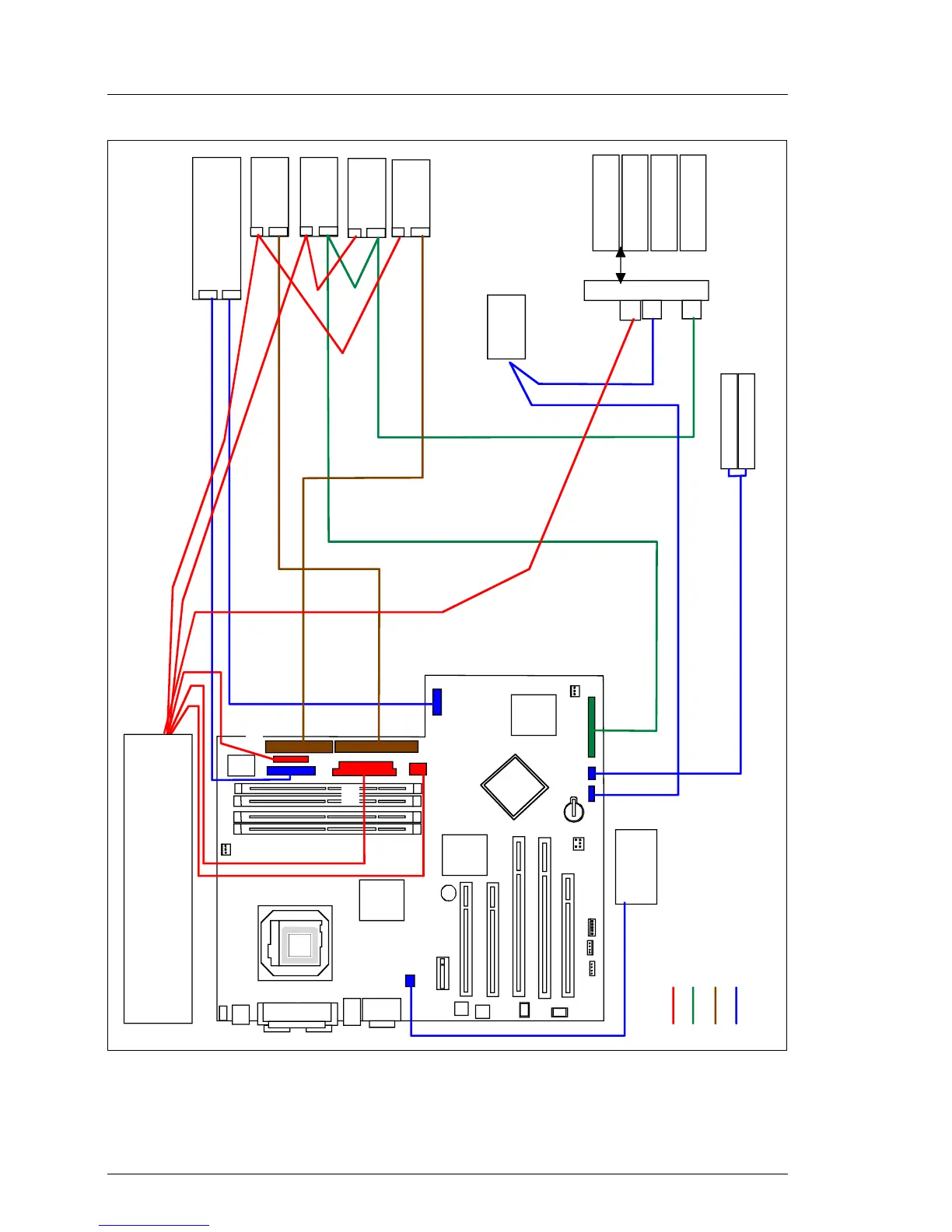

Figure 54: Cabling 1-channel SCSI version with onboard SCSI controller
Cable prefix: T26139-
Power
SCSI
IDE/FD
Data
Legend:
SCSI HD ID3
SCSI HD ID2
SCSI HD ID1
SCSI HD ID0
1" HDD
SCSI backplane
1-channel
Floppy
SCSI
device
SCSI
device
Floppy
Operating panel
USB
IDTEMP
Y3785-V301
Y1248-V8
Y1737-V111
Intrusion sw.
Intrusion sw.
Y3736-V1
Y3718-V508
System
fan
Y3728-V1
P1
P9
P8
P2
P4
P3
P5
Power supply
P6
X6
X7
X5
CD/DVD
Y3904-V1
Y3912-V1
