Preparation Rack model

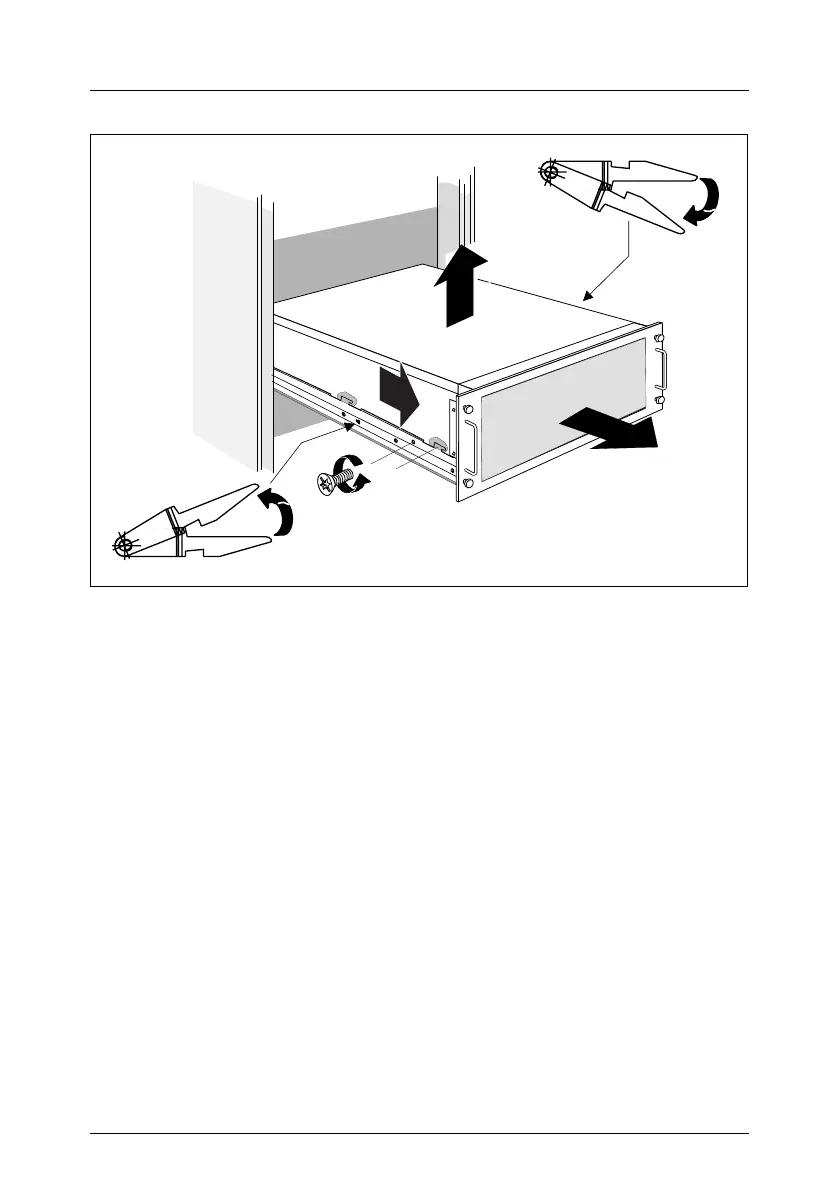

Figure 7: Removing the server from the rack cabinet
Ê Disconnect all cables on the rear of the server.
Ê On the telescopic rails remove one screw on either side of the server (1).
Ê
Release the locking mechanism (2a + 2b) of both rails and carefully pull the
server out of the rack (3) as far as it will go.
Ê Pull the server a little in the direction marked (4a) until the noses (4b) disen-
ngage.
V CAUTION!
At least two people are needed to lift the server out of the rack cabinet.
Ê Lift the server out of the rails (5) and place it on a table, for example.
4a
3
2a
2b
1
4b
5
