RemoteView Service Board S2 LP RemoteView components
Ê Open the server as described in the chapter “Preparation” on page 19 et
seqq..

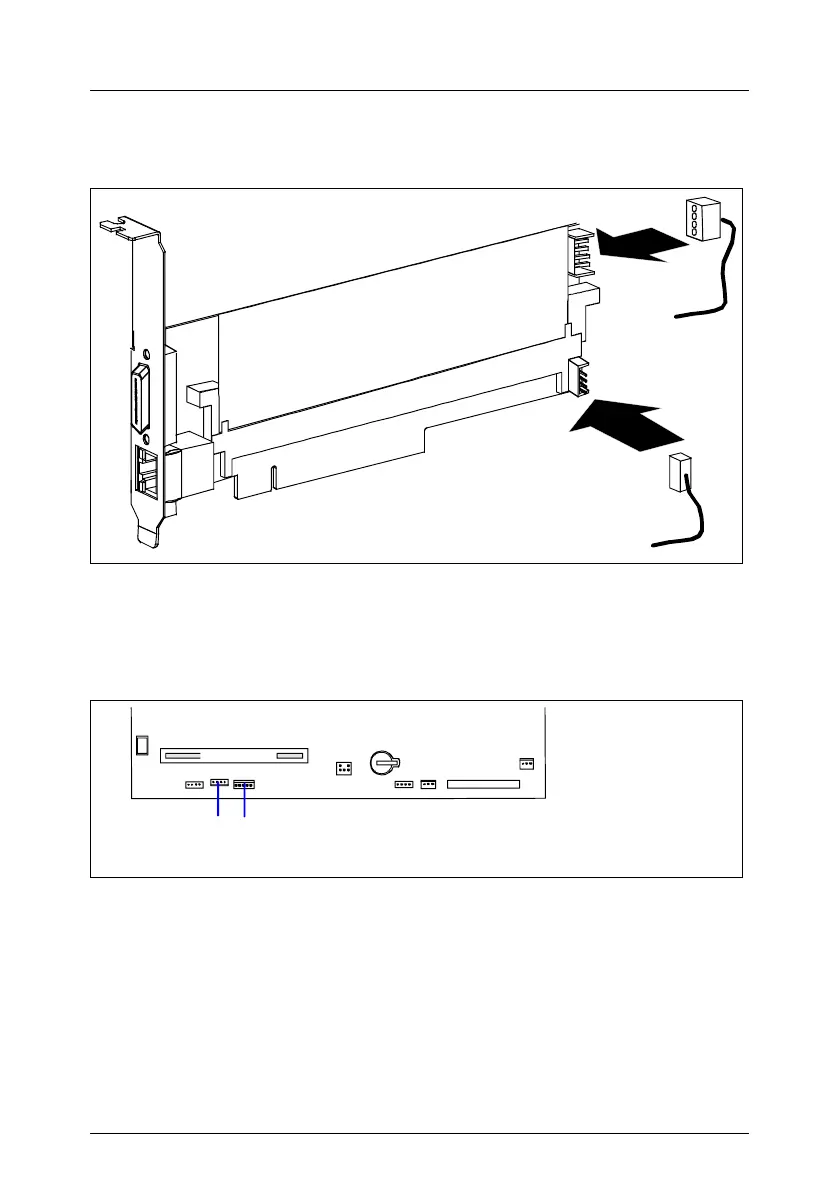

Figure 25: Connecting cables to the RSB S2 LP
Ê Connect the power cable (1) and the data cable (2) to the RSB S2 LP.
Ê Install the RSB S2 LP in PCI slot 1 as described in section “Installing a
controller” on page 40.
Figure 26: Connecting cables to the system board
Ê Connect the data cable to the connector IPMB (1) and the power cable to the
connector RSB LP Power (2) on the system board.
1
2
PCI Slot 1
