26 Service Supplement TX200 S6
Preparation

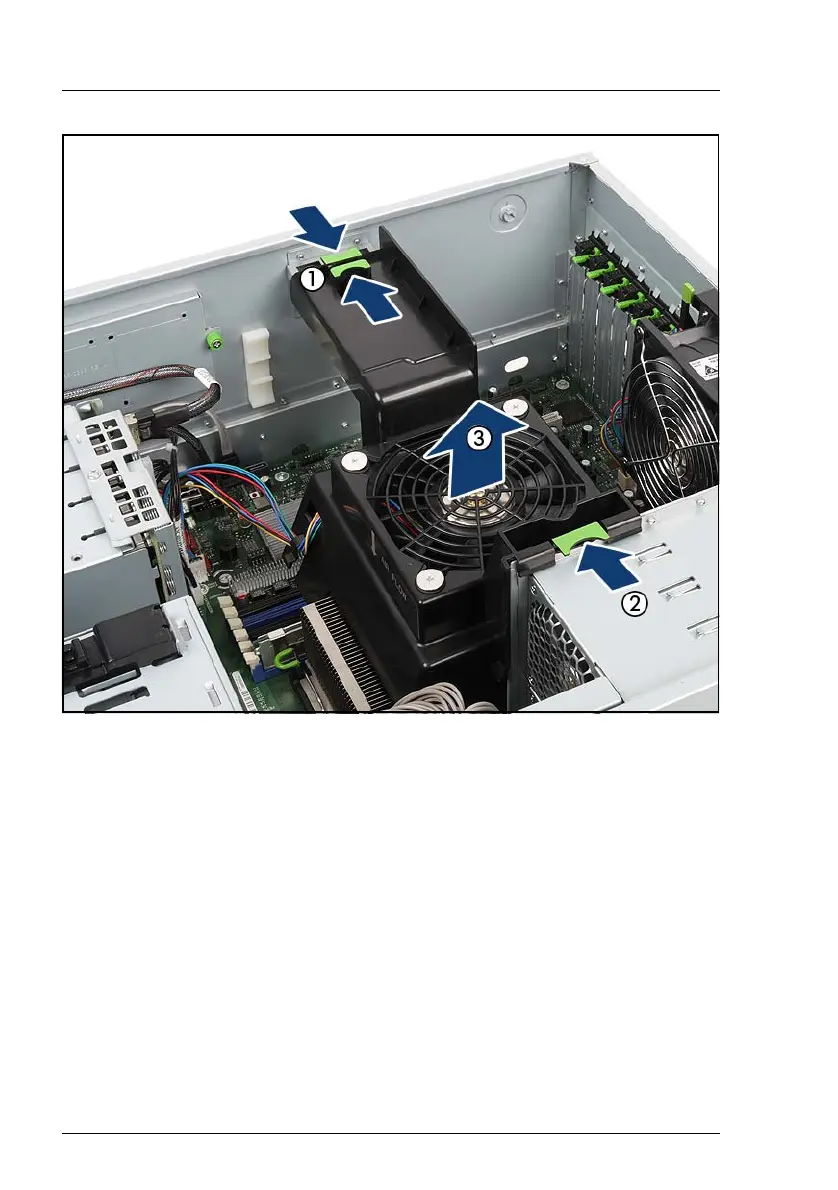

Figure 3: Example: Removing system fan 2&4
Ê Disconnect the fan cable from the connector FAN2 (if there is a second fan
cable, disconnect this from the connector FAN4) on the system board.
Ê Press the two green locks of the air duct together (1).
Ê Press the green lock of the air duct in the direction of the arrow (2).
Ê Lift the air duct with the integrated system fan 2 (or 2&4) up and out (3).
