38 Service Supplement TX200 S6
Replacing the intrusion switches
4.7 Replacing the intrusion switches
In case of the floorstand model, two intrusion switches monitor the removing of
the left side cover and the HDD cover. In case of the rack model, only one
intrusion switch is active, this one monitors the removing of the top cover.
One intrusion switch is situated at the side (floorstand model) or the top (rack
model) of the HDD cage, the other intrusion switch at the front cover under or
besides the HDD cage. Both intrusion switches are serially connected in one
cable and can only be replaced in pairs.
Ê Open the server and remove the front cover or the rack front cover as
described in the section "Preparation" on page 23.

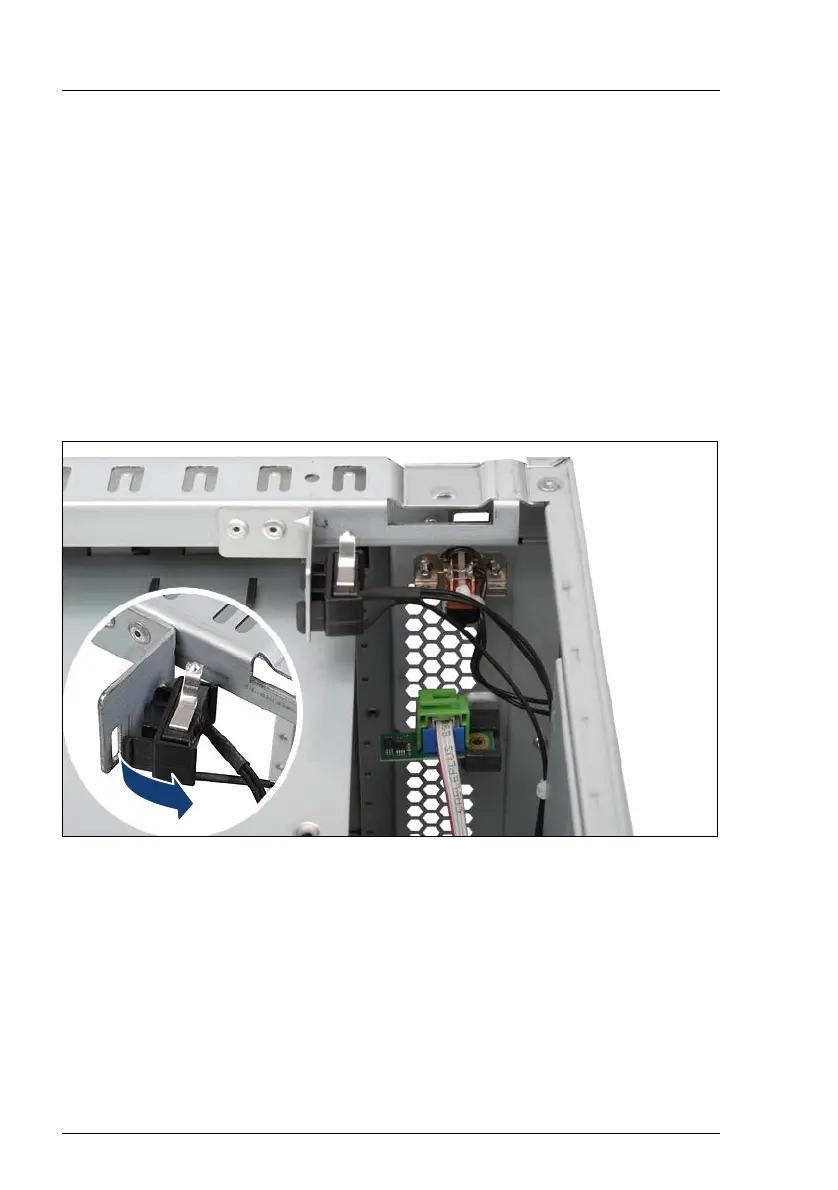

Figure 16: Removing the intrusion switch positioned on the mounting bracket
Ê Press the two hooks of the intrusion switch inward (see the arrows) and take
out the intrusion switch.
