30 Service Supplement TX200 S6
Replacing the standard PSU
4.3 Replacing the standard PSU
Ê Open the server as described in the section "Preparation" on page 23.
Ê Remove the system fan 2 and the system fan 1 as described in the section
"System fans" on page 25.
Ê Disconnect all power cables from the system board and the drives (see the
cabling plans in the Appendix of the Options Guide).
I Notice the routing of the cables.

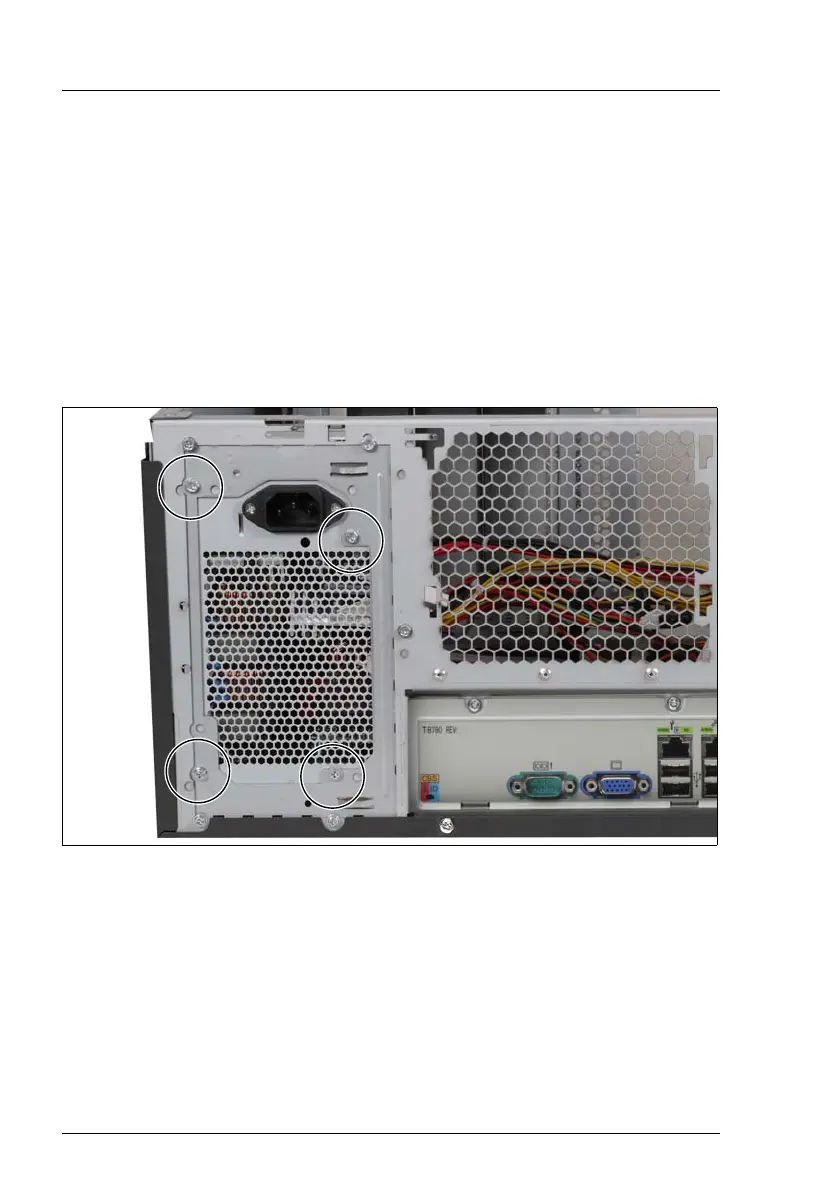

Figure 8: Fastening screws for the power supply unit
Ê Remove the four screws.
Ê Pull the defective power supply unit, without the adapter plate, inward and
take it out of the server.
