TX200 S6 Service Supplement 29
Replacing the front panel module

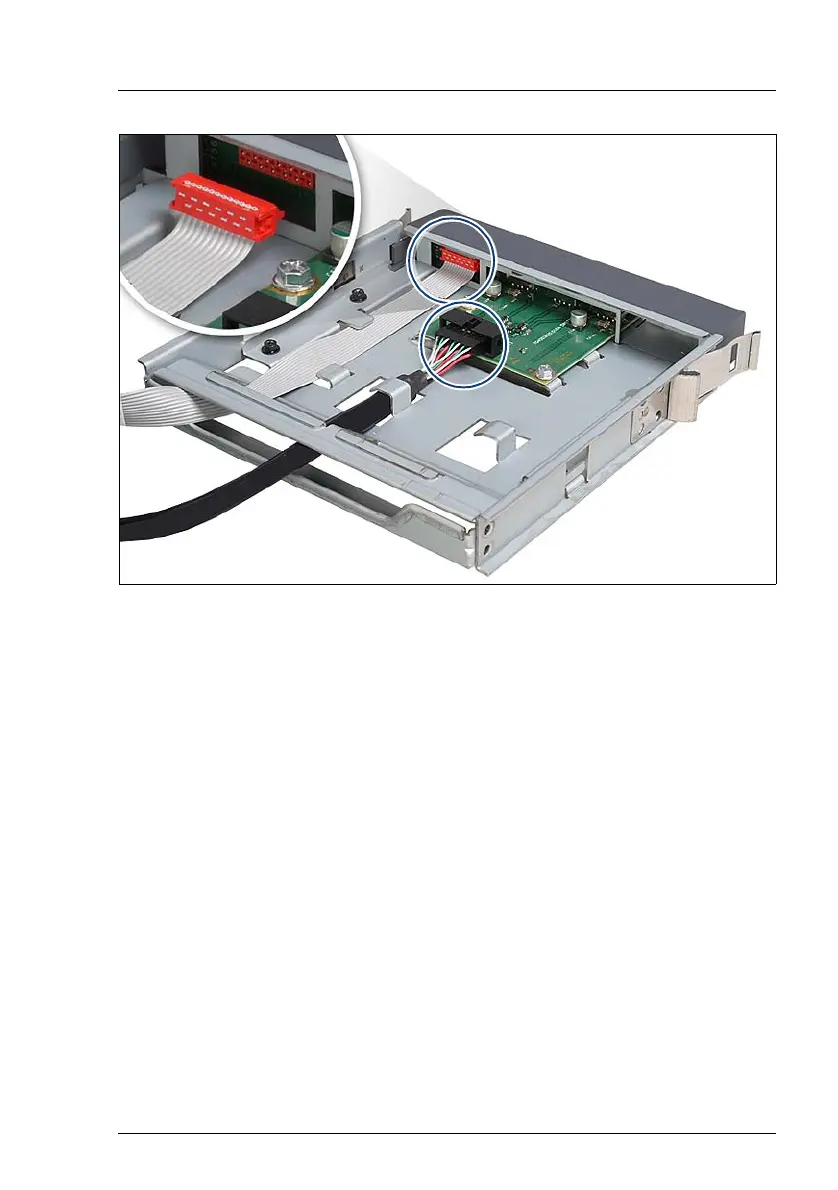

Figure 7: Removing cables
Ê Remove the two cables. Thread the cables out of the cable guides.
Ê Remove the defective front panel module.
Ê Push the new front panel module halfway into the upper bay of the drive
cage.
Ê Thread the cables in the cable guides. Connect the front panel cable and the
USB cable to the front panel board.
Ê Push the front panel module fully into its bay.
Ê Close the server and connect all power plugs (for a detailed description see
the Options Guide).
