Replacing the front panel module
Ê Pull system fan1 (or 1&3) in the direction of the arrow (2) to disengage the
four hooks.
Ê Take system fan1 (or 1&3) out (3).
4.2 Replacing the front panel module
Ê Open the server and remove the front cover or the rack front cover as
described in the section "Preparation" on page 23.

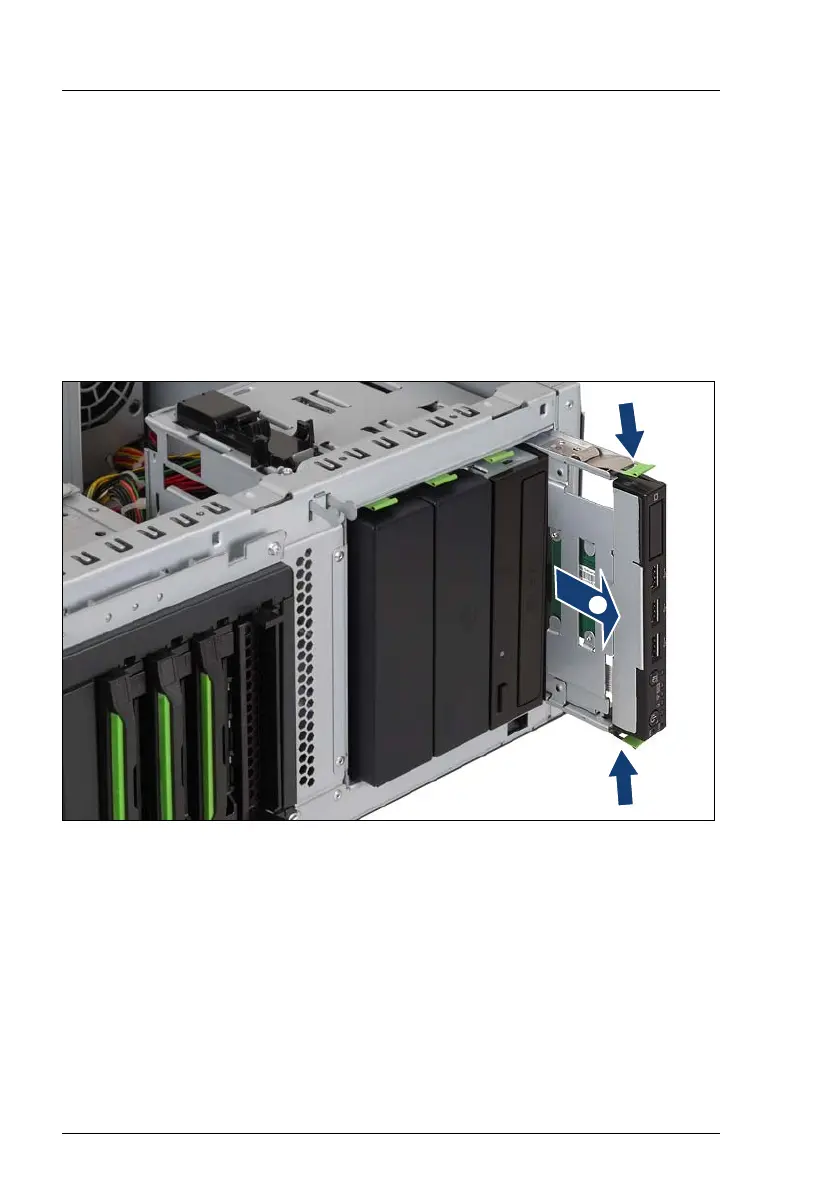

Figure 6: Removing the front panel module
Ê Press the two metal tongues of the EasyClick rails inward (1) until the locking
mechanism is released.
Ê Pull the front panel module forward out of its mounting location (2) until you
can remove the front panel cable and the USB cable from the front panel
board.
Ԙ
Ԙ
ԙ
