42 Service Supplement TX200 S6
Replacing the TPM
I In order to enable ServerView Operations Manager and ServerView
Installation Manager to identify the system, it is necessary to program the
chassis ID prom using the "ChassisIDProm Tool" after installing the new
IDTEMP combo.
The following information does not apply to the Japanese market:
This tool is available for download from the following Fujitsu Technology
Solutions support page:
http://partners.ts.fujitsu.com/com/service/intelservers/tools
4.9 Replacing the TPM
TPM is the short form for Trusted Platform Module.
V CAUTION!
Advise the customer that he must provide you with TPM backup copies.
For security reasons, the TPM must be restored/re-saved by the
customer. If the customer DOES NOT have a backup copy available,
inform him that replacing the TPM will cause him to lose all his data.
Ê Open the server as described in the section "Preparation" on page 23.
Ê Remove the system fan 2 (or 2&4) as described in the section "Removing
the system fan 2 (or 2&4)" on page 25.
Ê Remove the system board as described in the section "Replacing the
system board" on page 46.
Ê Lay the system board on a soft, antistatic surface with its component side
facing down.

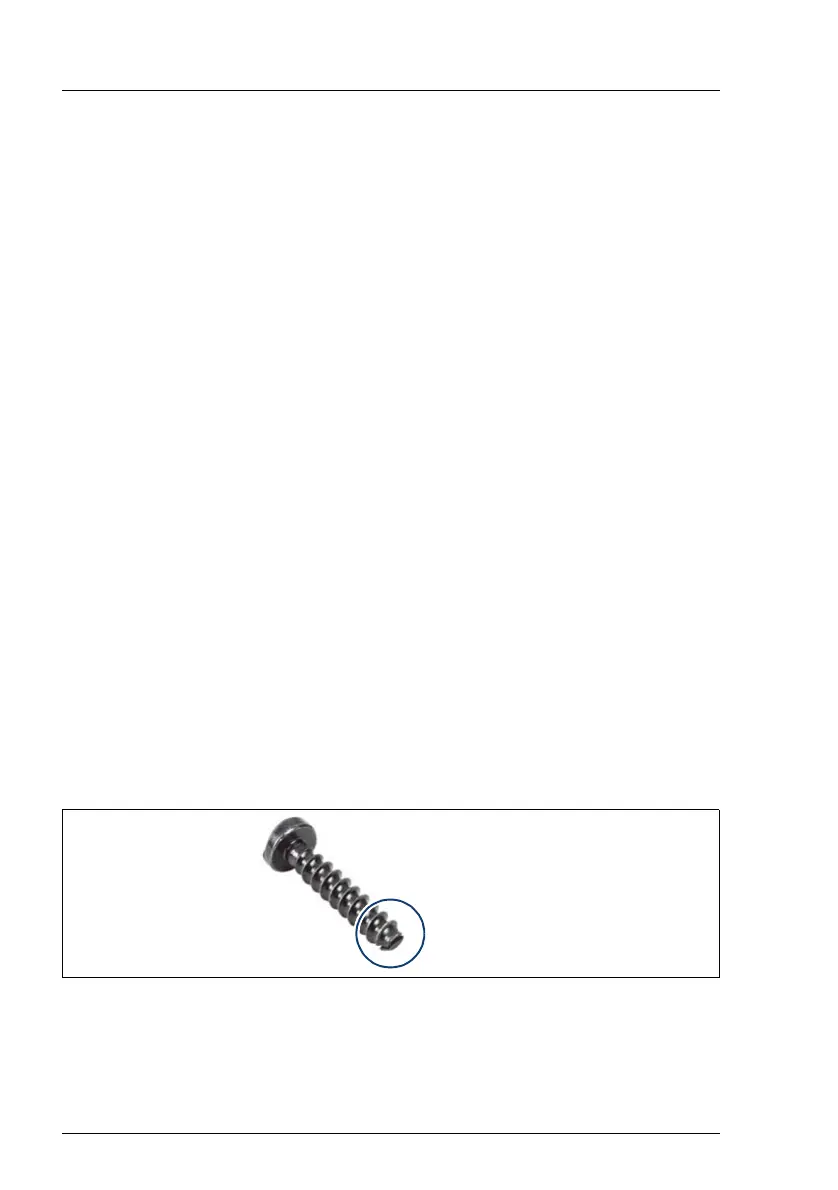

Figure 21: Locating the slotted lower end of TPM screw
Ê Locate the slotted lower end of the TPM screw (see circle).
Ê Remove the TPM screw using a thin slotted screwdriver (e.g. watchmaker's
screwdriver).
