TX200 S6 Service Supplement 31
Replacing the standard PSU

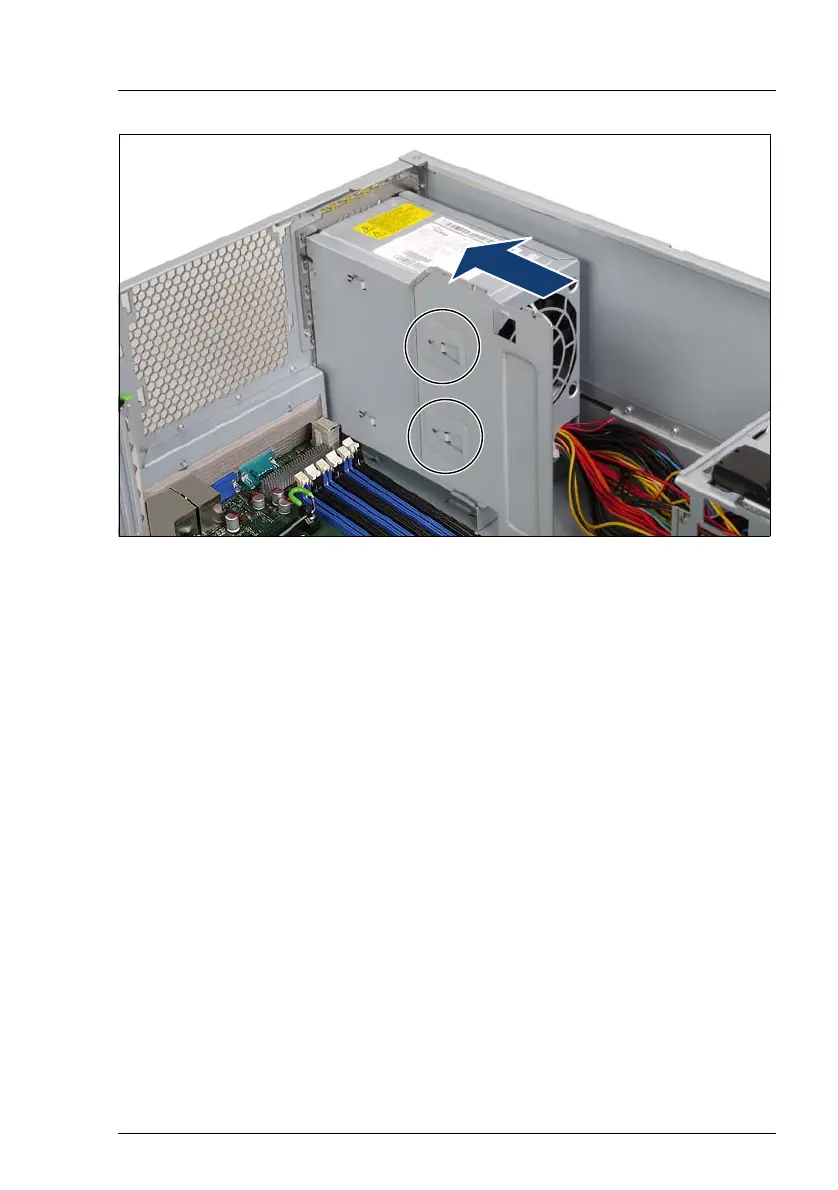

Figure 9: Inserting centering tabs in fixing plate
Ê Push the new power supply unit into the bay. Ensure that the centering tabs
of the power supply unit engage in the fixing plate. Ensure that no cables are
strained or trapped.
Ê Connect all power cables to the system board and the drives (see the cabling
plans in the Appendix of the Options Guide).
Ê Fasten the power supply unit with four screws to the rear of the server (see
figure 8 on page 30).
Ê Reinstall the system fan 1 and the system fan 2 (for a detailed description
see the Options Guide).
Ê Close the server and connect all power plugs (for a detailed description see
the Options Guide).
