TX200 S6 Service Supplement 33
Replacing the Power backplane
Ê Insert the new Power backplane and push the Power backplane upward until
it engages in the PS cage guides.
Ê Fasten the Power backplane with one screw in the PS cage (see figure 10
on page 32).

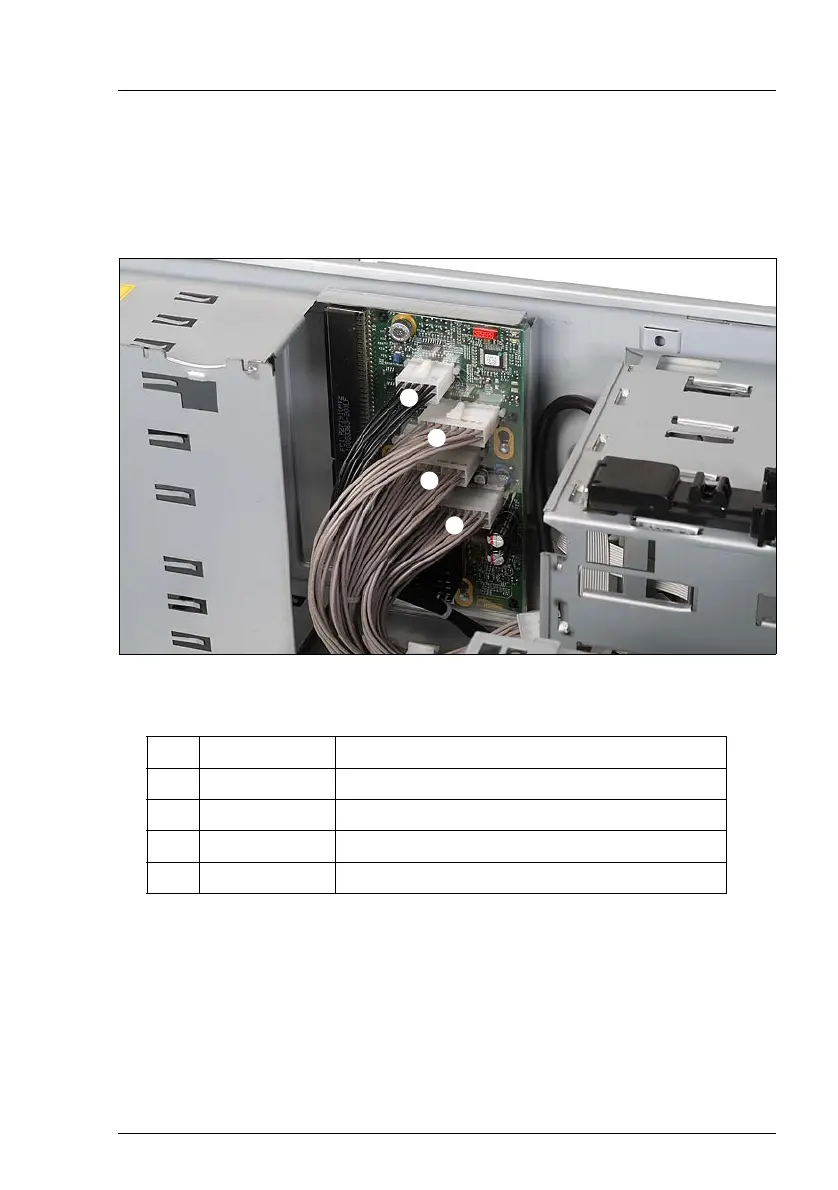

Figure 11: Connecting cables
Ê Plug the power cables on the Xn connectors of the new Power backplane:
Ê Reinstall the hot-plug power supply unit(s).
Ê Reinstall the system fan 1&3 and the system fan 2&4 (for a detailed
description see the Options Guide).
Ê Close the server and connect all power plugs (for a detailed description see
the Options Guide).
No Xn connector Cable designation
1 X3 T26139-Y3997-V1/A3C40101525
2 X2 T26139-Y3952-V451/A3C40101318
3 X4 T26139-Y3986-V401/A3C40101635
4 X1 T26139-Y3758-V8/A3C40057456
Ԙ
ԙ
Ԛ
ԛ
