Modular RAID 3Gb/s (SAS1.0)
3.2.3 Connectors and indicators

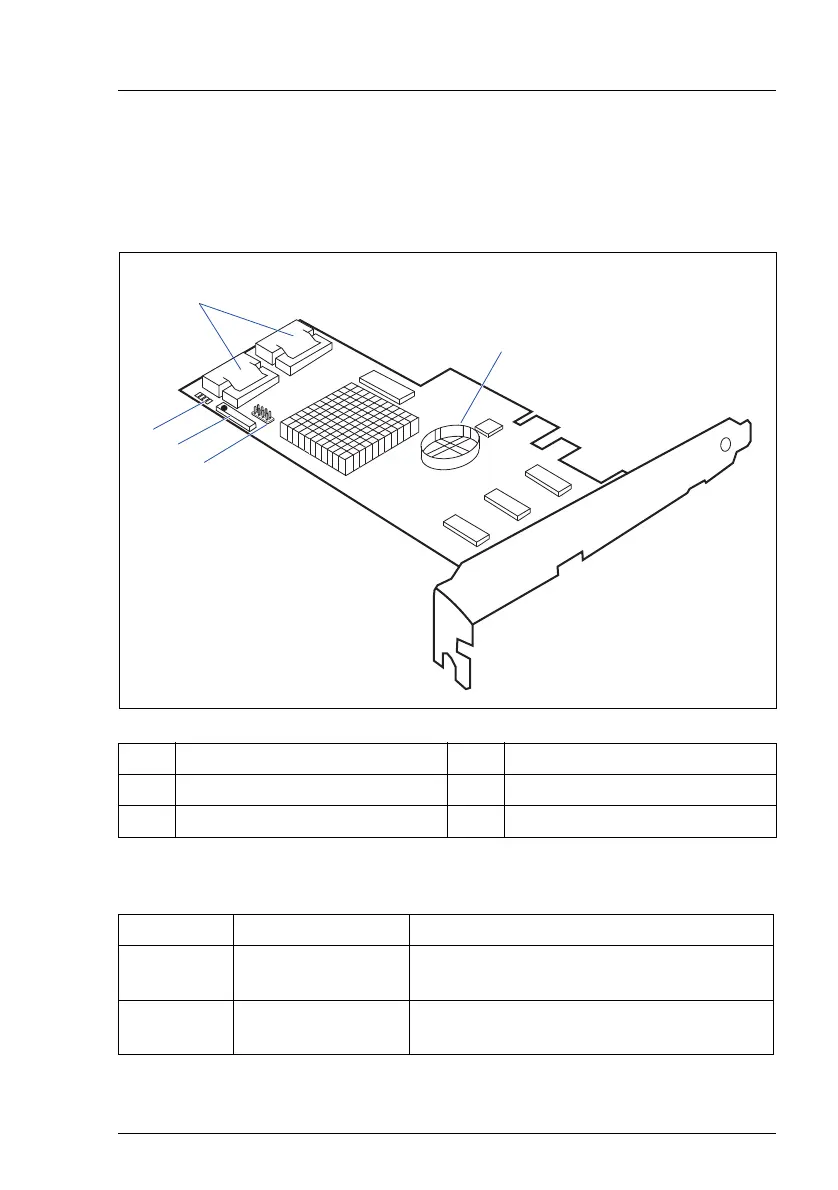

The following figure shows the location of the connectors and indicators on the
SAS RAID controller.
Connectors
1 HDD LED connector 2 iBBU connector
3 LEDs 4 SAS cable connectors
5 RAID key holder
Connector Type Description
SAS MLC1 x4 SAS, ports 0 - 3 SFF 8087 Mini SAS connector for SAS IO
cable to backplane and HDDs
SAS MLC2 x4 SAS, ports 4 - 7 SFF 8087 Mini SAS connector for SAS IO
cable to backplane and HDDs
4
5
1
2
3
