92 Modular RAID Controllers
Modular RAID 12Gb/s (SAS3.0)
5.3.3 Connectors and indicators
The following figure shows the location of the connectors and indicators on the
SAS RAID controller.

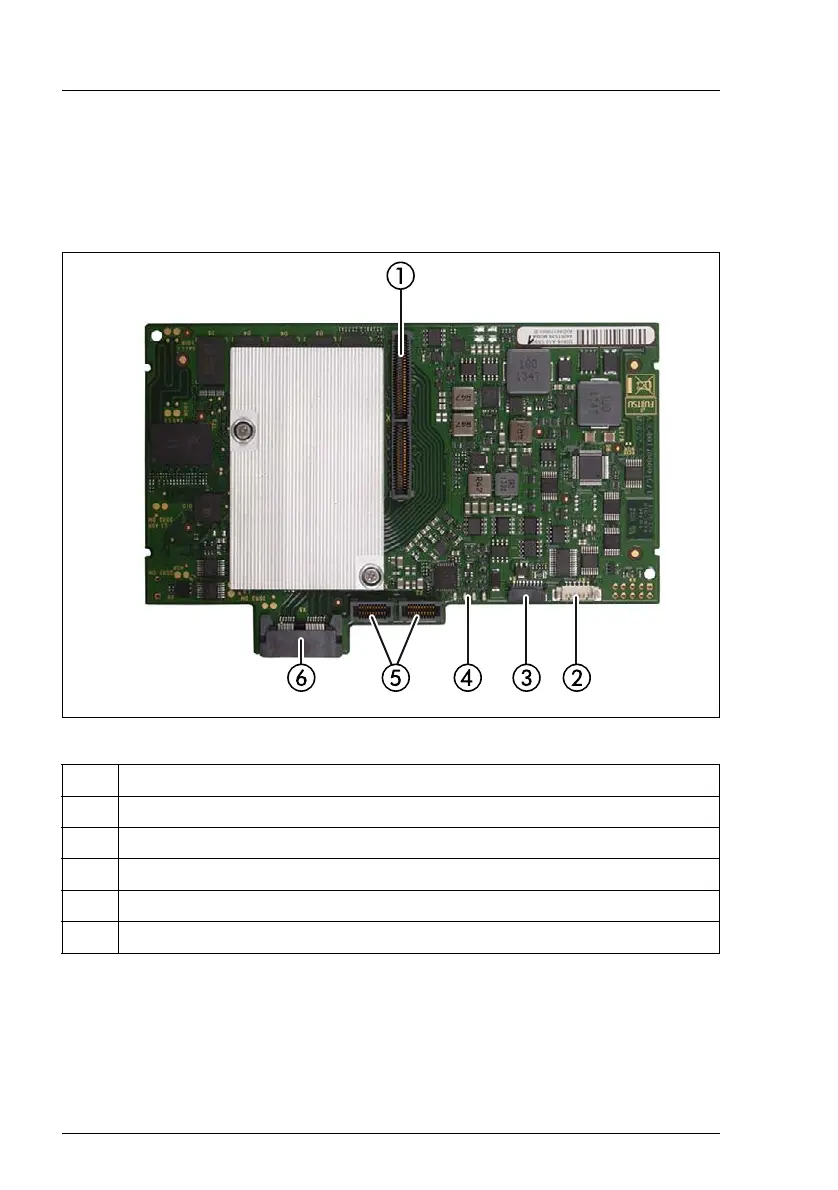

Figure 33: "PRAID CM400i" board layout
1 HSEC8 connector for PCIe
2 UART connector
3 SuperCap Module connector
4 Indicator (H322 Heart Beat)
5 2x SAS connectors (port 0-1)
6 SAS connector (port 4-7)
