Fujitsu RAID 0/1 SAS based on LSI MegaRAID - Controller Versions; Connectors and Indicators

Modular RAID Controllers 39
Modular RAID 6Gb/s (SAS2.0)
4.2.2 Controller versions
4.2.3 Connectors and indicators

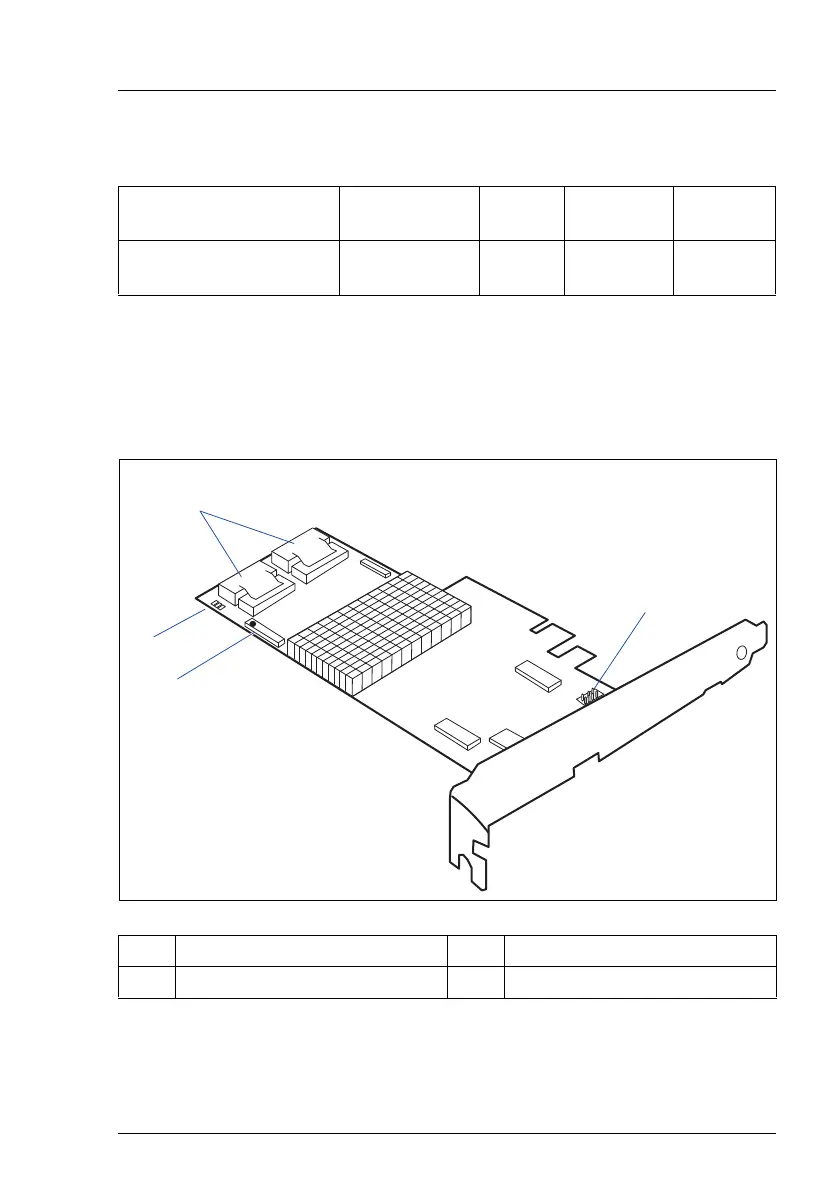

The following figure shows the location of the connectors and indicators on the
SAS RAID controller.
Name Chip Cache
No. of SAS
channels
Bracket
type
S26361-D2616-Ax LSI SAS2108 512 MB 8
low profile
full height
1 iBBU connector 3 SAS cable connectors
2 LEDs 4 HDD LED connector
1
2
3
4
