Modular RAID Controllers 69
Modular RAID 6Gb/s (SAS2.0)

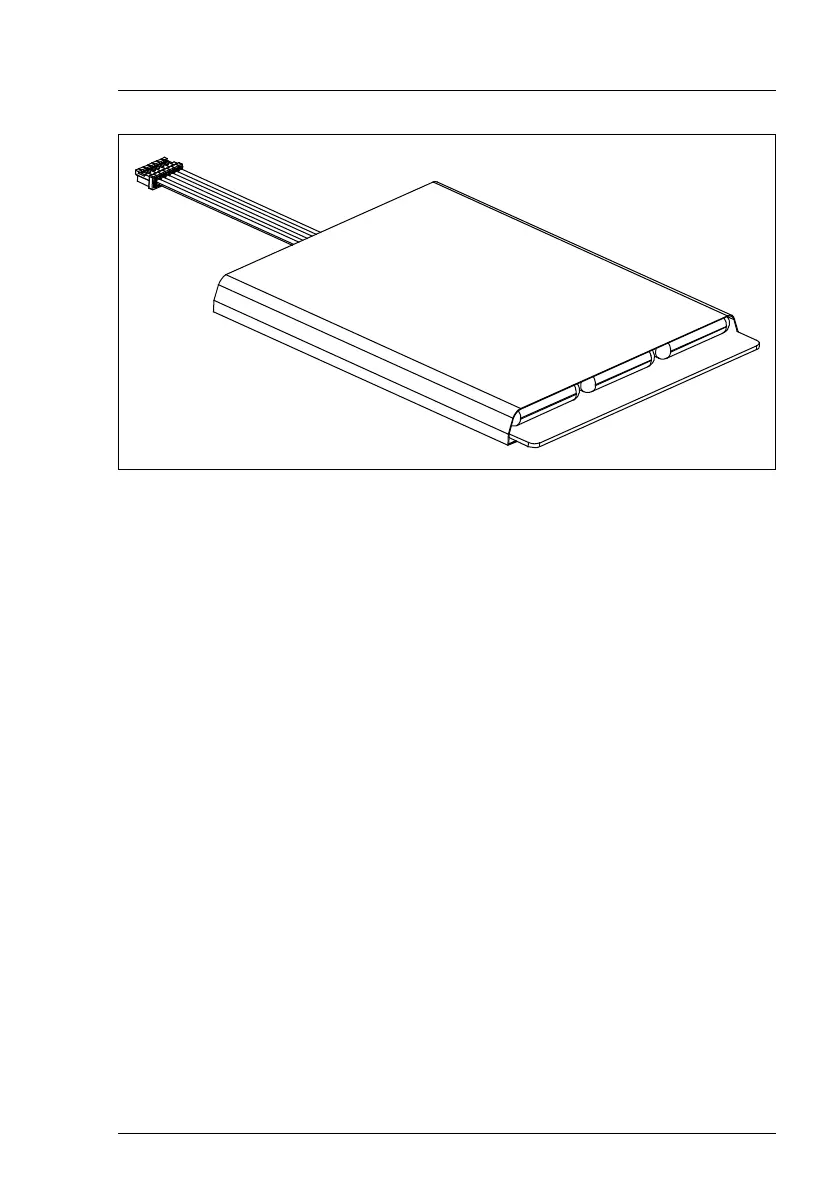

Figure 21: LSI FBU02A module
Ê Install the FBU into the system and connect it to the SAS RAID controller as
described in the "PRIMERGY BX920 S3 Server Blade" Upgrade and
Maintenance Manual.
