2. Installation

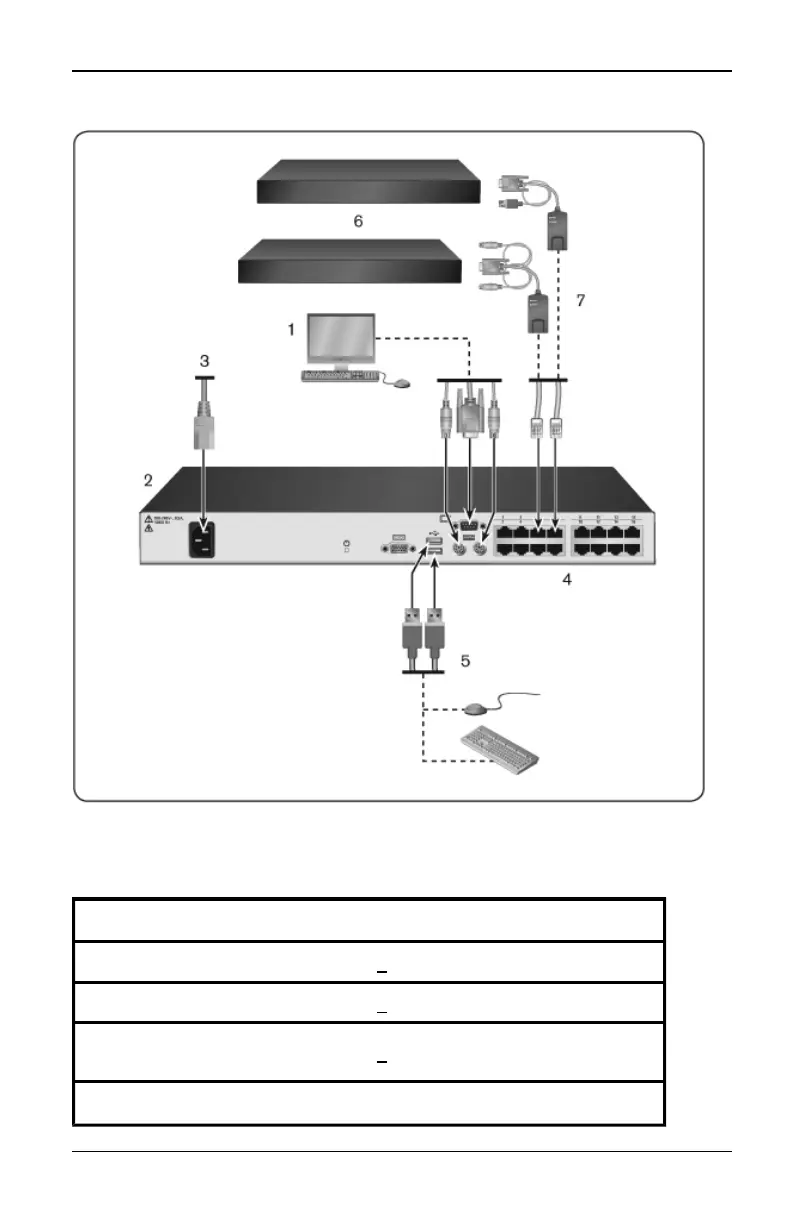

Figure 2.1. Basic s3-1601 Switch Configuration
Number Description Number Description
1 Analog User
5
Local USBConnections
2 KVM Switch
6
Servers 1-16
3 Power Cord
7
IQ or SMBAdapter modules.
PS/2, USB, Sun and serial IQ.
4 Ports 1-16
Table 2.1: Descriptions for Figure 2.1
