9.3 Replacing the Pick Roller
ScanSnap S510M Operator's Guide 223
Replacing Consumables
9

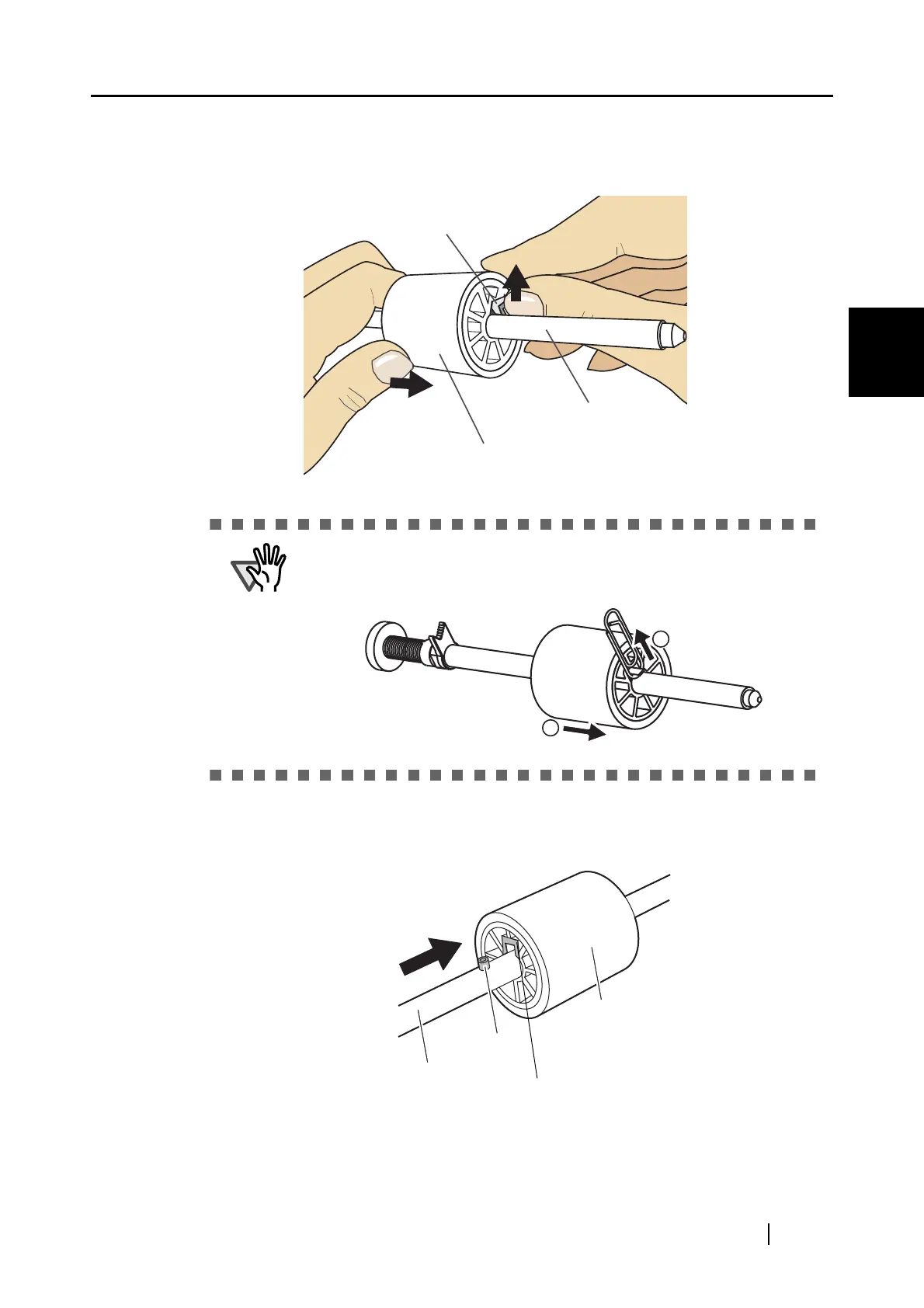

7. Remove the pick roller from its shaft.
Pull out the shaft from the pick roller while lifting up its tab.
8. Attach a new pick roller to the shaft.
Insert the shaft aligning the protrusion with the slot on the new pick roller.
ATTENTION
If you push up the pick roller tab using your fingernail, your fingernail
may be hurt or get chipped. If you cannot push it up successfully with
your fingernail, you can use a paper clip to push up the pick roller tab.
Tab
Pick roller
Shaft
1
2
Pick roller
Slot
Shaft
Protrusion
