Fulton Vertical
MultiPort
Steam Boilers
(Standard Burners)
Fulton Models: VMP40, VMP49.5, VMP50, VMP60,
VMP80, VMP100, VMP130 and
VMP150
Product Data Submittal

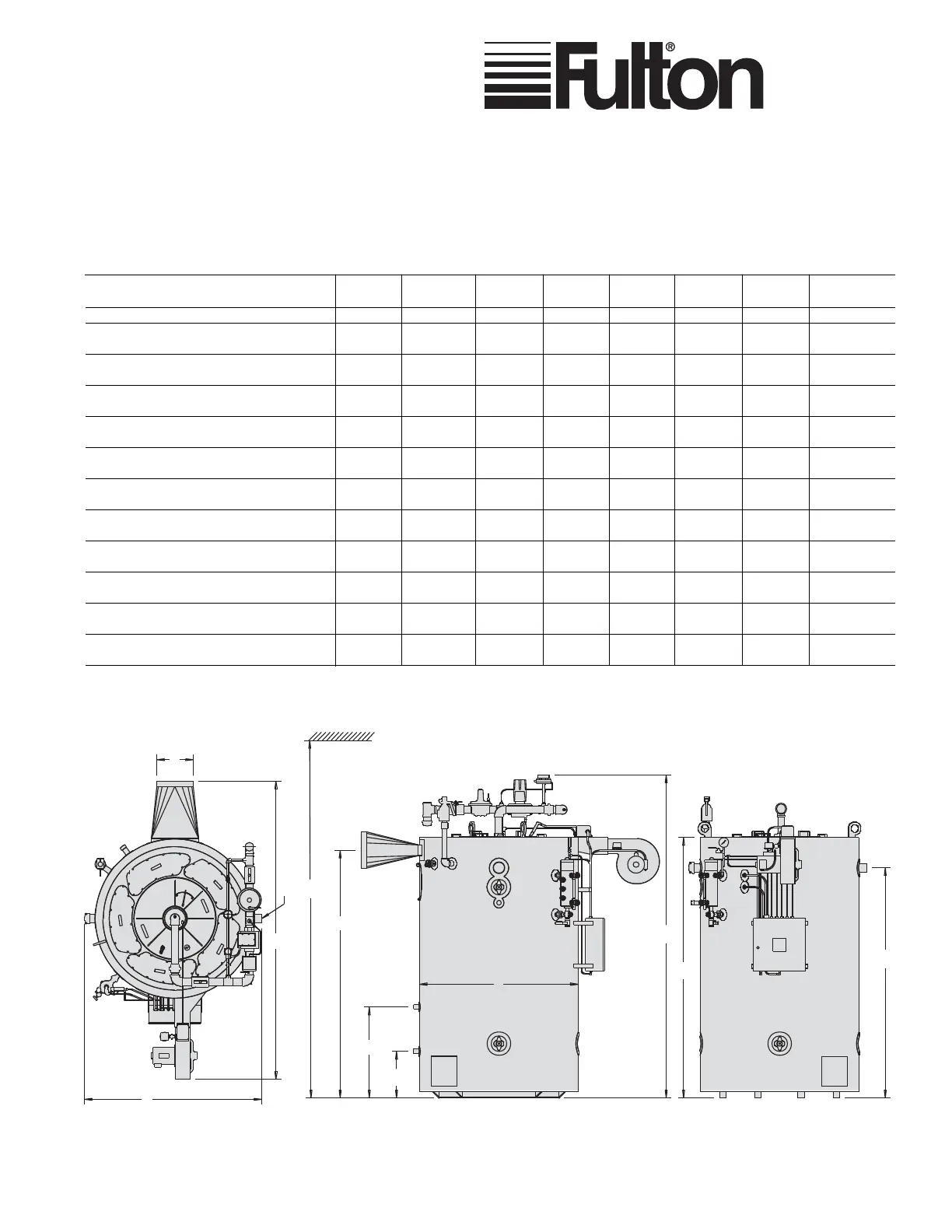

Models VMP 40 49.5 50 60 80 100 130 150
Unit Size: BHP 40 49.5 50 60 80 100 130 150
A. Boiler Diameter IN 50.5 55 55 55 63 69 76.5 76.5
MM 1283 1397 1397 1397 1600 1753 1943 1943
B. Boiler Height IN 84 91 91 97 100 100 115 115
MM 2133 2312 2312 2464 2540 2540 2921 2921
C. Boiler Depth IN 90 100 100 100 114 119 128 130
MM 2286 2540 2540 2540 2896 3022 3251 3302
D. Boiler Height w/trim IN 107 112 112 118 124 126 135 141
MM 2718 2832 2832 2984 3150 3200 3429 3582
E. Overall Boiler Width IN 56 62 62 62 68 74 84.5 84.5
MM 1422 1575 1575 1575 1727 1880 2146 2146
F. Flue Outlet Diameter IN 12 12 12 12 14 14 14 16
MM 305 305 305 305 356 356 356 407
G. To Center of Flue Outlet IN 79 86 86 92 95 95 107 107
MM 2006 2184 2184 2237 2413 2413 2718 2718
H. Feedwater Inlet IN 35 35 35 35 35 35 39 39
MM 889 889 889 889 889 889 991 991
J. Blowdown Outlet IN 17 18 18 18 18 18 22 22
MM 432 457 457 457 457 457 559 559
K. Height to Steam Outlet
1
IN 73 77 77 84 89 89 102 102
MM 1854 4956 4956 2134 2260 2260 2591 2591
L. Min. Clearance to Ceiling IN 110 115 115 125 130 132 145 145
MM 2794 2921 2921 3175 3302 3353 3683 3683
Specifications and Dimensions are approximate. We reserve the right to change specifications and/or dimensions.
NOTE: Minimum clearance is 24” to the side and back and 36” in front of unit.
1. The boiler may be fitted with a 90
o
elbow spool piece making the steam outlet connection higher.
Dimensions
