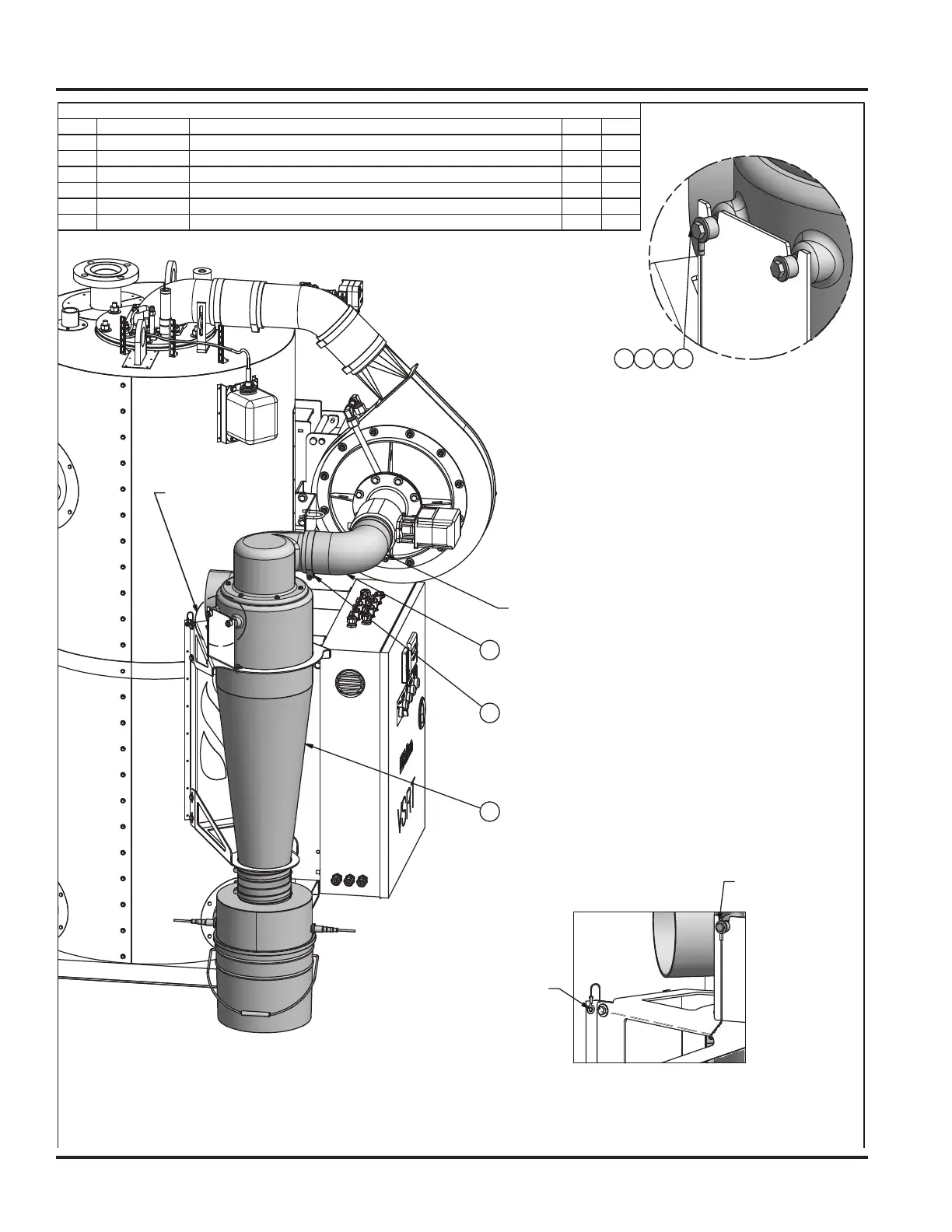

CYCLONE ASSEMBLY
CYCLONE MOUNT DETAIL
(INSTALL HARDWARE/GROMMETS FIRST, AND ADJUST
TOP AND LOWER CYCLONE BRACKET IF NEEDED)
ATTACH GROUNDING WIRE
CYCLONE MOUNT DETAIL
BILL OF MATERIAL
U.O.M.QTYDESCRIPTION
PART NUMBERITEM
EA.
2
PVC GROMMET 5/8" OD X 1/4" ID FOR 11 GA. PANEL (MCMASTER # 93115132)
2-12-000429
1
EA.
2
1/4-20 X 1 1/4" HHCS, SAE GR. 5 BOLT
2-22-0000118
EA.
2
1/4" USS FLAT WASHER
2-22-00003910
EA.1
VSRT-30 PLASTIC CYCLONE - NYB2-30-292030
17
EA.
2
EYELET WIRE RING TERMINAL, 16-14 AWG NYLON EXPANDED INSULATION (14RB-14)
2-45-00043121
FT.
1.88516 AWG WIRE2-45-00099922
3
14
17
81021
1
TIGHTEN UNTIL BOLT BOTTOMS OUT IN INSERT
DO NOT OVERTIGHTEN
(TYP. 2 PLCS.)
TORQUE ELBOW CLAMPS TO 40 IN-LB.
ORIENT BOLTS UNDERNEATH AWAY FROM VISIBILITY
(TYP. 2 PLCS.)
ADD ELBOW AND CLAMPS TO CYCLONE OUTLET
BEFORE LOWERING INTO BRACKETS. LEAVE ELBOW
FACING SLIGHTLY DOWNWARDS THEN ROTATE FLAT
ONTO AIR INLET AS CYCLONE GOES DOWN.
ATTACH WITH REMAINING #10-24
SELF TAPPING SCREW
ATTACH BETWEEN WASHER
AND PVC GROMMET
