FULTON VSRT 50 - Page 73

MAINTENANCE & TROUBLESHOOTING  4
Questions? Call (315) 298-5121, or visit us online at www.fulton.com
4-13
VSRT_IOM_2018-1213

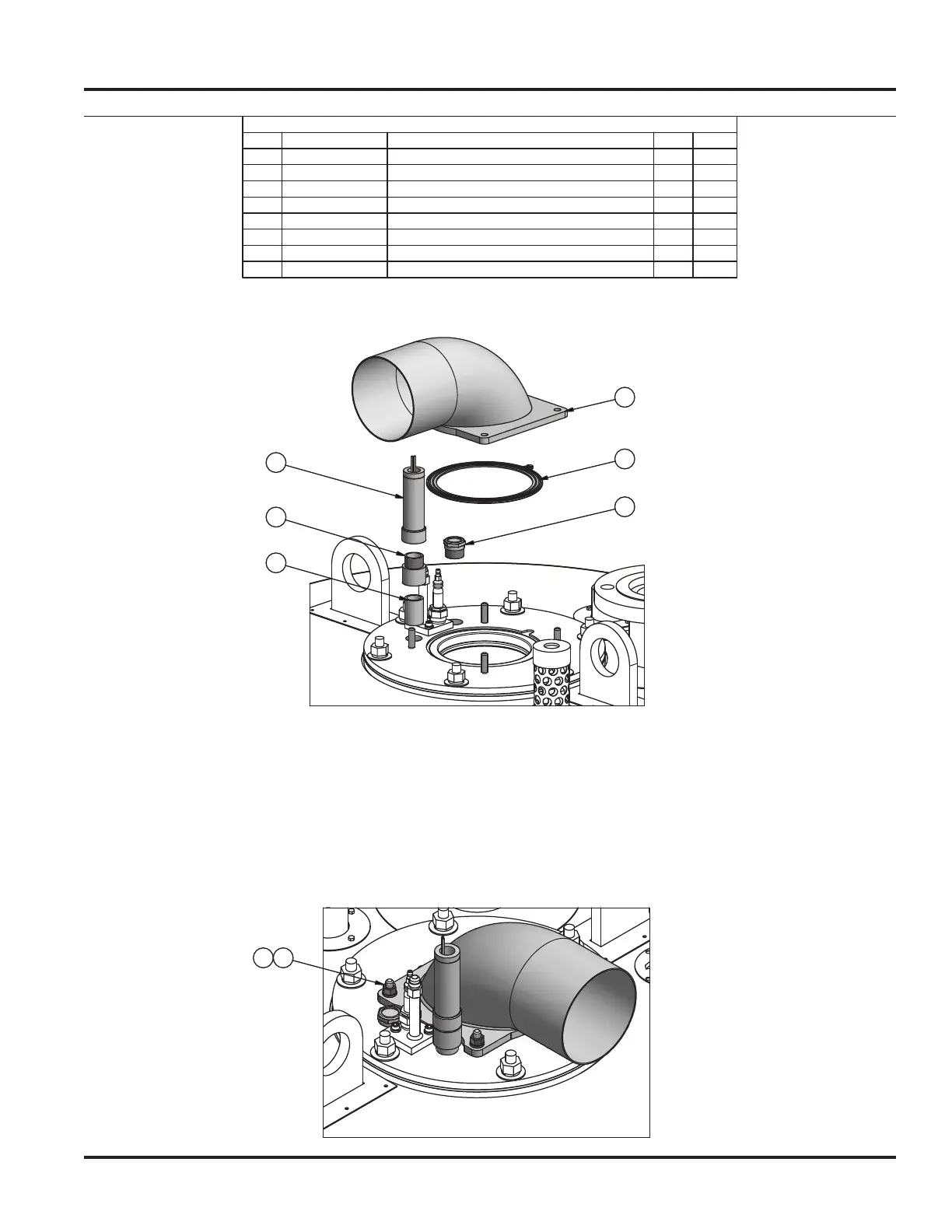

PREMIX ELBOW HARDWARE
PREMIX ELBOW / UV SCANNER / SIGHT GLASS
BILL OF MATERIAL
ITEM PART NUMBER
DESCRIPTION QTY U.O.M.
1
2-12-000012
3/4" NPT SIGHT OBSERVATION PORT
1 EA.
4
2-12-290015 VSRT 140MM BURNER GASKET
1 EA.
10 2-22-000156
3/8-16 NiCu400 HEX NUT (MONEL400)
4 EA.
13 2-22-000461
3/8" 316 STAINLESS STEEL LOCK WASHER
4 EA.
21
2-35-001178
3/4" X 1-1/2" - NPT STAINLESS STEEL SCH 40 ( 316L ) NIPPLE
1 EA.
22 2-40-000464
3/4" - 14 NPSM THERMAL BARRIER FOR FLAME DETECTOR
1 EA.
23 2-40-001107 SIEMENS LMV2-3 HIGH SENSITIVITY UV SCANNER
1 EA.
25 5-10-290018 VSRT PREMIX ELBOW - BURNER SIDE ELBOW ASSEMBLY
1 EA.
1013
APPLY LOCTITE C5-A
TORQUE TO 23 FT-LB
(TYP. 4 PLCS.)
21
22
23
1
4
25
APPLY LOCTITE C5-A
APPLY MEGALOC
THREAD SEALANT
