4  MAINTENANCE & TROUBLESHOOTING
© Fulton 2018
4-14
VSRT_IOM_2018-1213

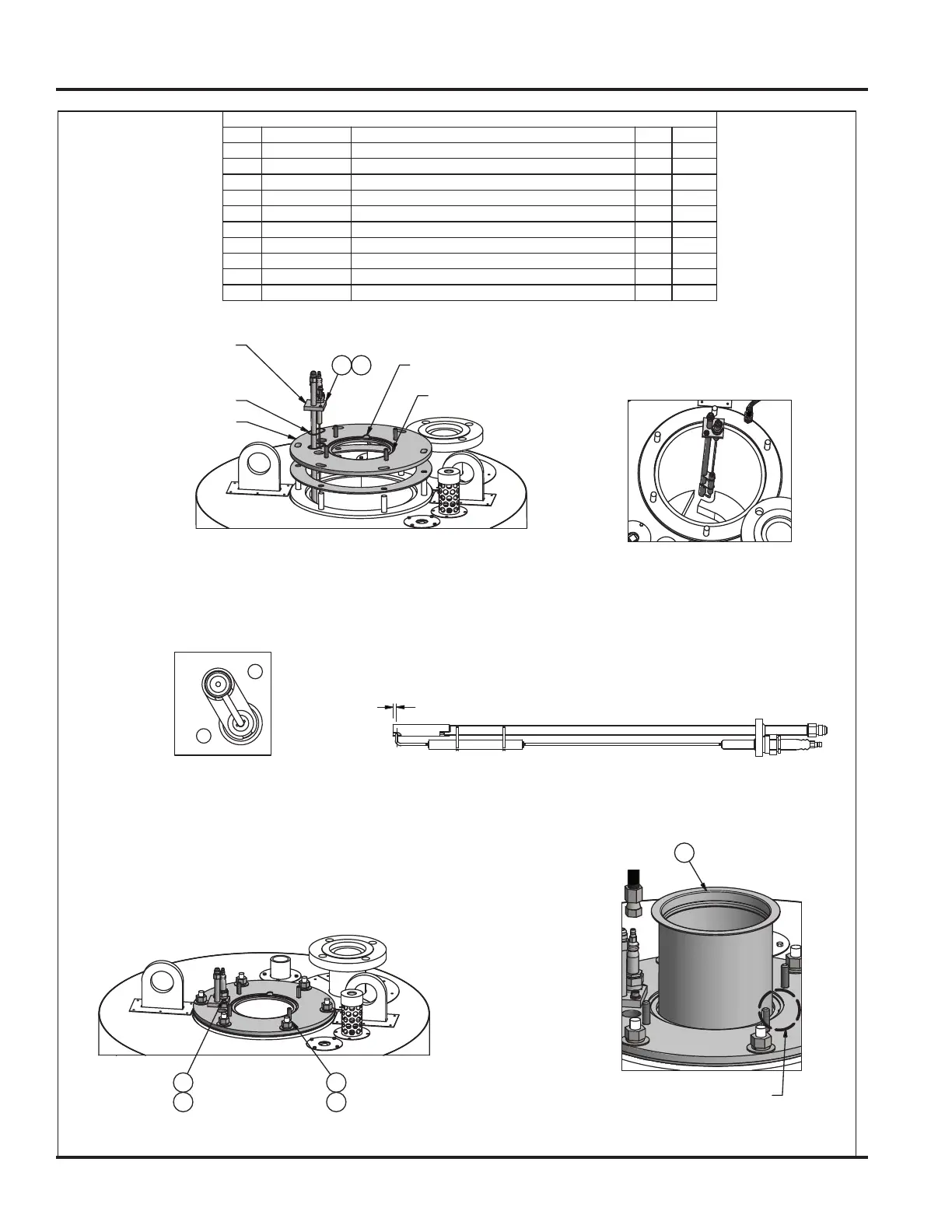

TOP PLATE AND PILOT ASSEMBLY
HARDWARE DETAIL
ELECTRODE VS. REFRACTORY ALIGNMENT
BURNER ALIGNMENT
ELECTRODE SIDE VIEW
ELECTRODE BOTTOM VIEW
BILL OF MATERIAL
ITEM PART NUMBER
DESCRIPTION QTY U.O.M.
2 2-12-000721
029 1/16" VITON O-RING 1.625 OD
1 EA.
3 2-12-290014
VSRT PV FLANGE TO TOP PLATE GASKET FOR 10" FURNACE
1 EA.
7
2-22-000042
1/2" USS FLAT WASHER
6
EA.
8 2-22-000058
1/2-13 HEX NUT, GR. 2H
6
EA.
9 2-22-000059
1/2" MEDIUM LOCK WASHER
6
EA.
11
2-22-000268
1/4" 316 STAINLESS STEEL LOCK WASHER
2
EA.
14
2-22-290000
1/4-20 x 1" A286 SOCKET HEAD CAP SCREW
2
EA.
17
2-30-290300
WORGAS PREMIX BURNER 140MM OD (PX.1803)
1 EA.
24 5-10-290006 VSRT TOP PLATE ASSEMBLY
1 EA.
27 7-20-290030
VSRT PILOT ASSEMBLY (19 3/8" LONG)
1
EA.
SLIDE PILOT INTO TOP PLATE BEFORE
ADDING BURNER AND HARDWARE
IF PILOT WILL NOT FIT,
RE-ORIENTATE REFRACTORY
APPLY SUPER-O-LUBE
PILOT OPENINS TO LEFT OF BOILER
GASKET RECESS TAB TO BACK
BURNER PROTRUSION TAB TO RIGHT
27 2
14
11
8
7
APPLY LOCTITE 592
TORQUE TO 50 IN-LB
(TYP. 2 PLCS.)
APPLY LOCTITE C5-A
FOR TORQUE SPECS SEE
PREMIX AND PRESSURE SWITCH DETAIL
(TYP. 6 PLCS.)
(GASKET RECESS TAB)
(BURNER ALIGNMENT PROTRUSION TAB)
ALIGN SEAM IN BURNER WITH
PROTRUSION TAB ON TOP PLATE
(TAB IS COLINEAR WITH LIFTING EYES)
17
3/16
