EVO EXPERT Manual 45/105

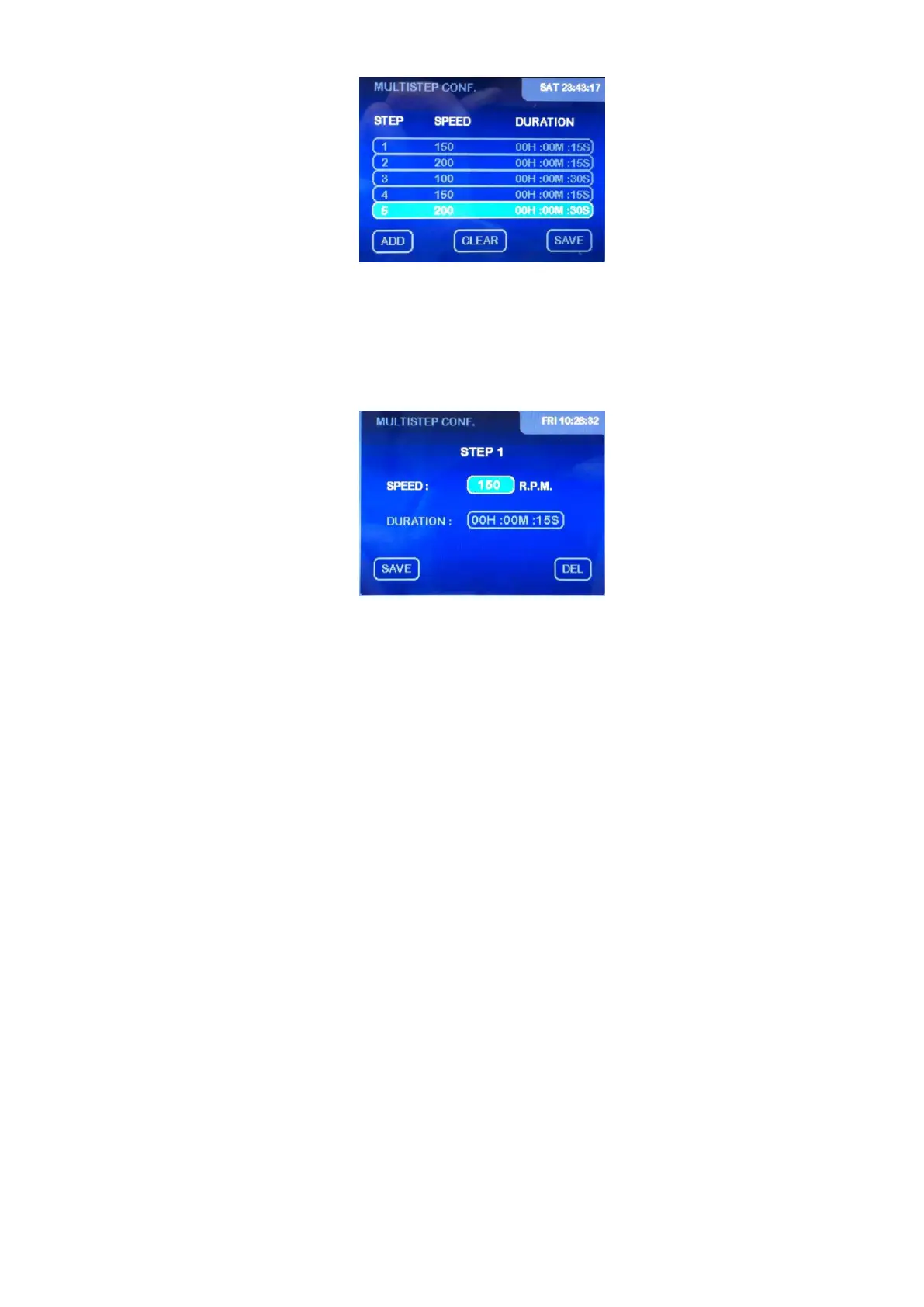

MULTIESTEP programmed speeds will be displayed. It can be added new steps with the ‘ADD’
option and the list of steps can be deleted with the ‘CLEAR’ option. The list of steps can be also
saved with the ‘SAVE’ option. Use the ‘’ and ‘’ keys to scroll through these options and press
‘ENTER’ to select one of them. Moreover, the steps listed can be edited or deleted individually. Use
the ‘’ and ‘’ keys to highlight one of the steps and press ‘ENTER’ to edit its parameters. The
following screen will appear:
Choose the ‘SAVE’ option to save the modified parameters or ‘DEL’ to delete the step under edition.
The viscometer will return to the screen with the list of the configured steps. The list will appear
updated if the step under edition has been deleted.
The following information is obtained on this MULTISTEP example screen:
- Position 1. Speed 150.0 rpm, experiment time 15 seconds.
- Position 2. Speed 200.0 rpm, experiment time 15 seconds.
- Position 3. Speed 100.0 rpm, experiment time 30 seconds.
- Position 4. Speed 150.0 rpm, experiment time 15 seconds.
- Position 5. Speed 200.0 rpm, experiment time 30 seconds.
This means that the viscometer will have a first measuring at 150.0 rpm for 15 seconds, then for
another 15 seconds will take another measurement at 200.0 rpm, drop to 100.0 rpm and 30 second
measuring at this speed, then take another 15 second measurement at 150.0 rpm, to return to
200.0 where it will measure for another 30 seconds.
The MULTISTEP program will have as many steps as shown in the MULTISTEP configuration
information screen, with a maximum of 10 steps.
Once all the steps are configured, use the ‘’ and ‘’ keys to select the option ‘SAVE’ and press
‘ENTER’ to save the programming. Then you will see the following screen:
For L models:
