Funkwerk TRT800 User Manual

TRT800 / P/N 800ATC-(200)-(200)
Operation and Installation
19Document-No: 03.2102.010.71e / Revision: 2.02
3.7 Wiring
3.7.1 Conductor Cross Section
Power Supply (Power, GND): AWG20 (0,62 mm²)
Signals: AWG22 (0,38 mm²)
The conductors must be approved for aircraft use.

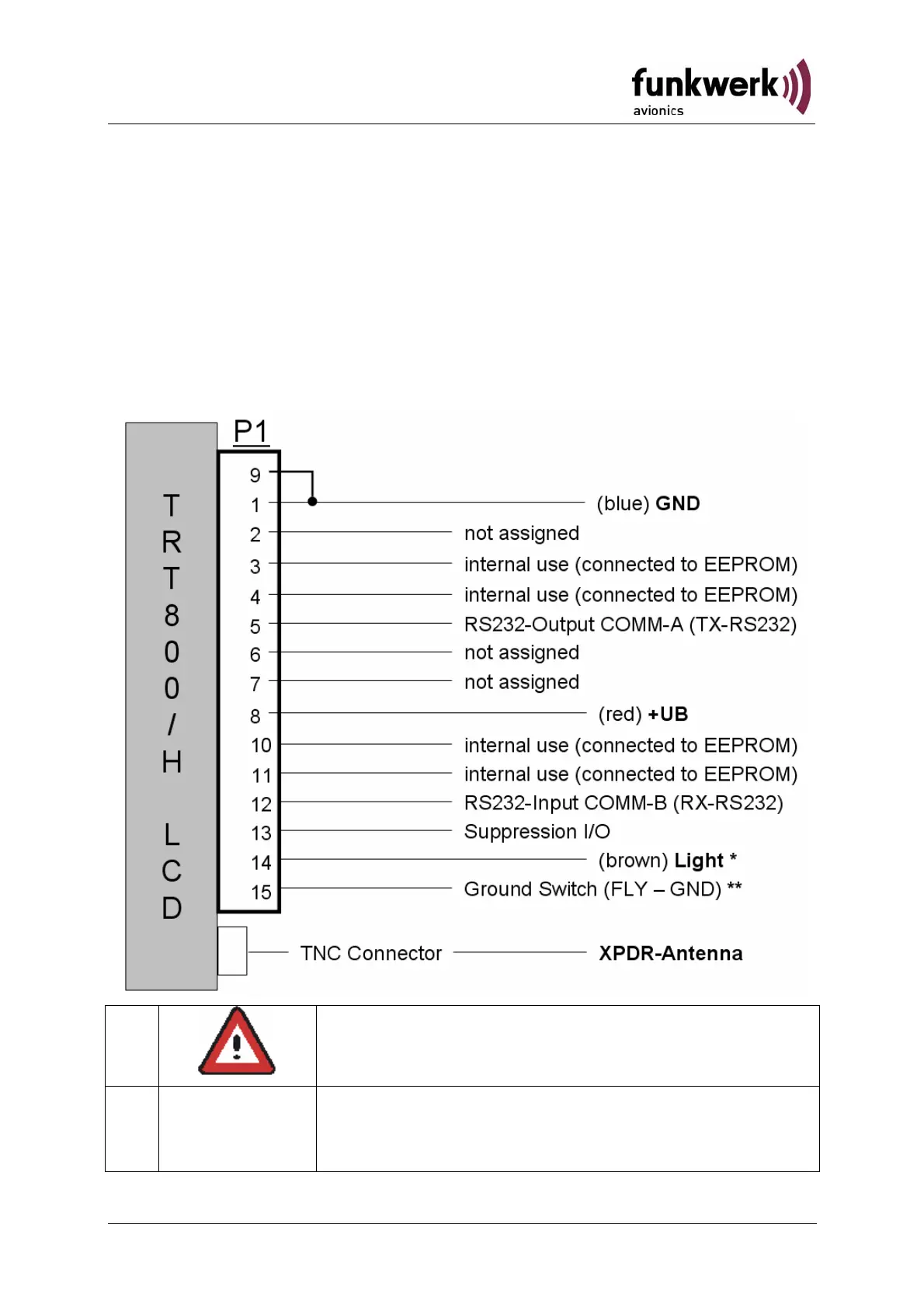

3.7.2 TRT800EM – External Memory
*
Refer to 3.6.1.3 Background Illumination
**
Ground
Switch/
FLY-GND
If a ground switch is connected, in “on-ground“
state pin 15 must be connected to „GND“,
otherwise leave Pin 15 open.
