TRT800 / P/N 800ATC-(200)-(200)
Operation and Installation
32 Document-No: 03.2102.010.71e / Revision: 2.02

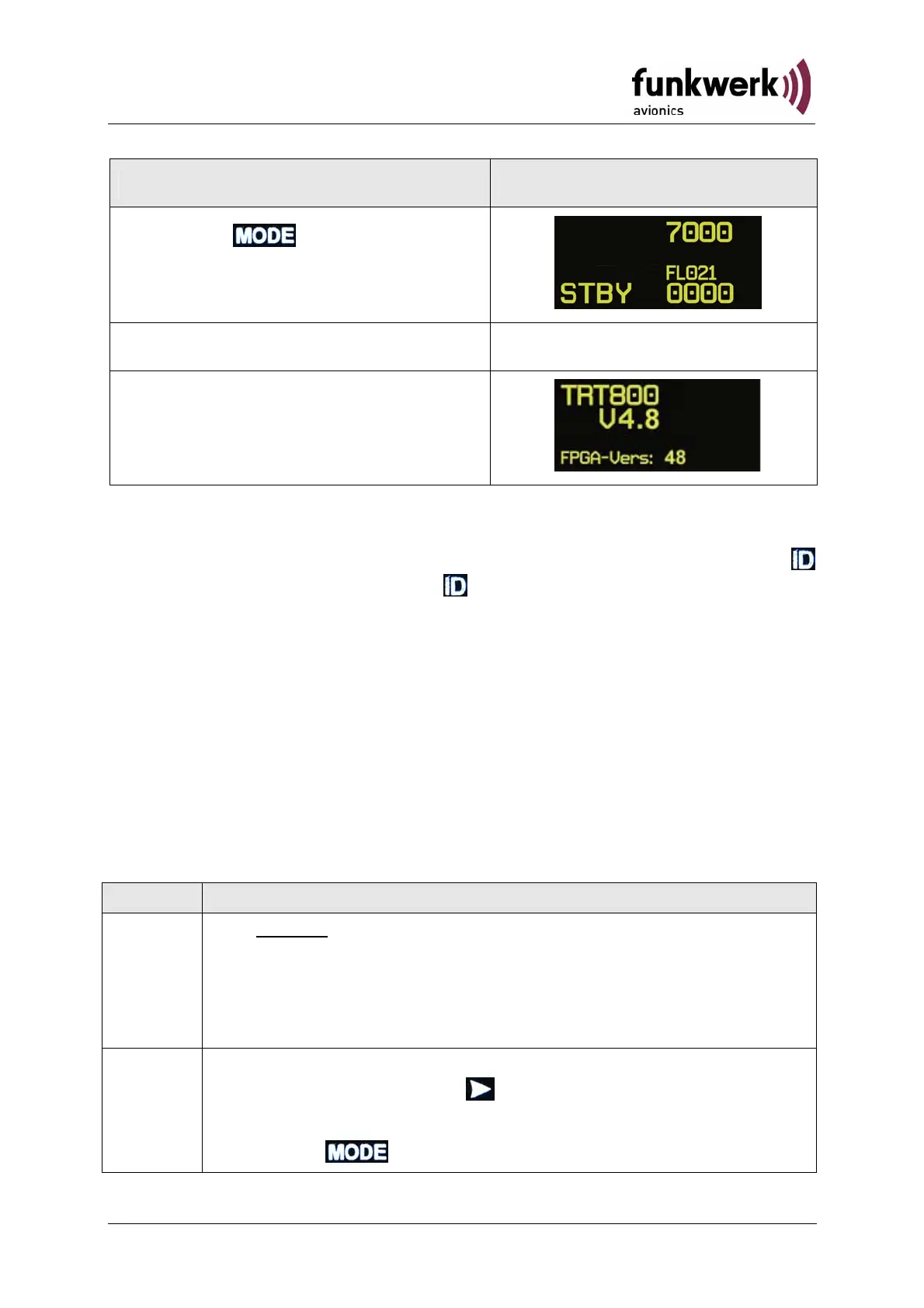

Step Display (Example)
14. Press . You have now left
the configuration mode and are
back in normal operation.
15. Switch Off the transponder
16. Switch On the transponder.
Your ICAO 24-Bit Aircraft
Address is now stored.
4.2.2 Functions Overview
In order to access the functions described in the following table press
during Standby mode and release
at the corresponding counter value.
Proceed analog to the steps 1 to 4 described in the table in section 4.2.1.
The lower line contains the ICAO 24-Bit Aircraft Address (AA), the
Aircraft-Category (AC) und die Flight-ID (FID). AA and AC are marked by
a line above the numbers:
Digits 1 .. 6: ICAO 24-Bit Aircraft Address (HEX-Format)
Digits 7 .. 8: Aircraft Category
Digits 9 .. 16: Flight-ID (FID)
Counter Function
1..4 Just Display of:
ICAO 24-Bit Aircraft Address (AA)
Aircraft-ID (AC)
Flight-ID (FID)
Display automatically returns to STBY
5..19 Change only FID (AA/AC-input locked)
• Set Cursor („^“) with
• turn rotary knob to select characters
• press
to save and to return to STBY
