TRT800 / P/N 800ATC-(200)-(200)
Operation and Installation
9Document-No: 03.2102.010.71e / Revision: 2.02

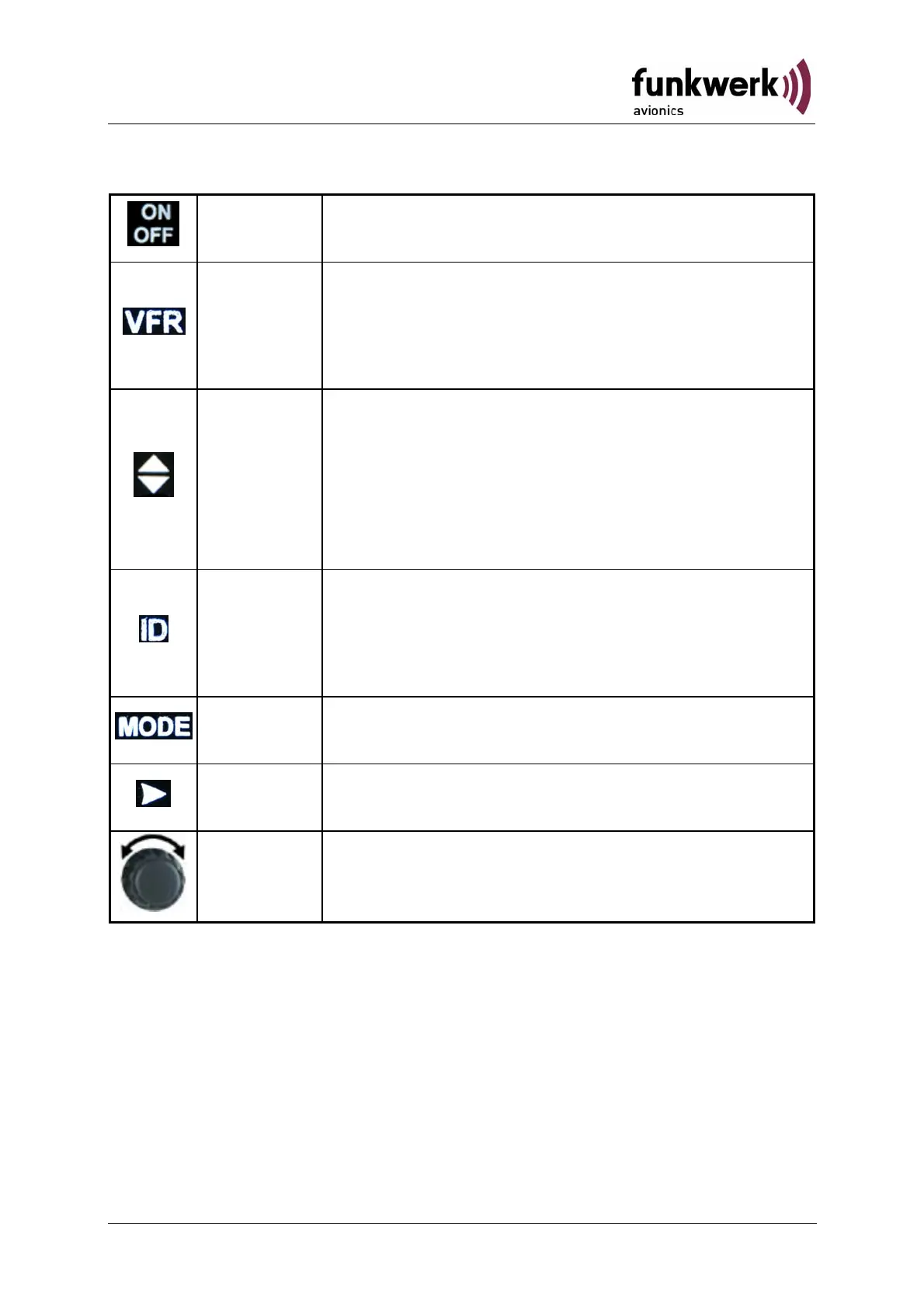

ON/OFF
Switch ON press button for appr. 0,5 s
Switch OFF press button for appr. 3 s
VFR
1. activate/deactivate VFR Squawk
(press shortly)
2. store active Squawk as VFR/VFRW-
Squawk (press button 3 s) see section. 2.7
CHANGE
1. change between active and standby-
Squawk
2. works as cursor back button (opposite
function of the cursor button) during entering
values and also for navigating backwards
through the configuration menu (see 4.2.1)
IDENT
1. „Squawk Ident“, sends Ident marking (SPI)
for 18 s (in normal mode) see section. 2.8
2. configuration of Flight-ID (FID)
(in standby mode, press button for 5 s)
MODE
Select transponder mode ACS, A-S or
Standby (see section 2.5)
CURSOR Set position of Cursor
Rotary
Knob
Adjust/Enter values at current cursor position,
select options; set standby Squawk see
section 2.6
