1. MOUNTING
1-4
3. Secure the hanger to the desktop or overhead with four self-tapping screws
(
φ
5
×
20, installation material). The hanger should be oriented with the insertion
slots facing forward. For mounting dimensions and required clearance, see the
outline drawing at the back of this manual.
4. Referring to section 2.3.2, connect the cabling to the display unit.
5. Fit the display unit to the hanger and tighten the bolts on either side evenly. Adjust
the angle of the display unit so that the screen can be viewed clearly.
1.1.5 How to flush mount the display unit
There are two methods for flush mounting the display unit, flush mounting the display
unit directly to the installation location or with using the optional front fixing panel kit.
Note: For flush mounting in a panel, the mounting surface must be flat. Do not install
the unit on an uneven surface.
Flush mounting the display unit (unit only)
1. Cut a hole in the installation location, using the template at the back of this man-
ual.
2. Drill four holes for the self-tapping screws (φ3×20).
3. Place the display unit on a firm, flat surface, then unfasten the two knobs on either
side of the display unit to separate the display unit and a hanger. The hanger can
be disposed.
4. Gently lift the locking tabs at the
rear of the front panel, then the re-
move the front panel. Be careful
not to damage the locking tabs or
the front panel.
5. Fit the supplied F Mount Cushion (20-032-1064) to the rear of the display unit or
to the installation hole.

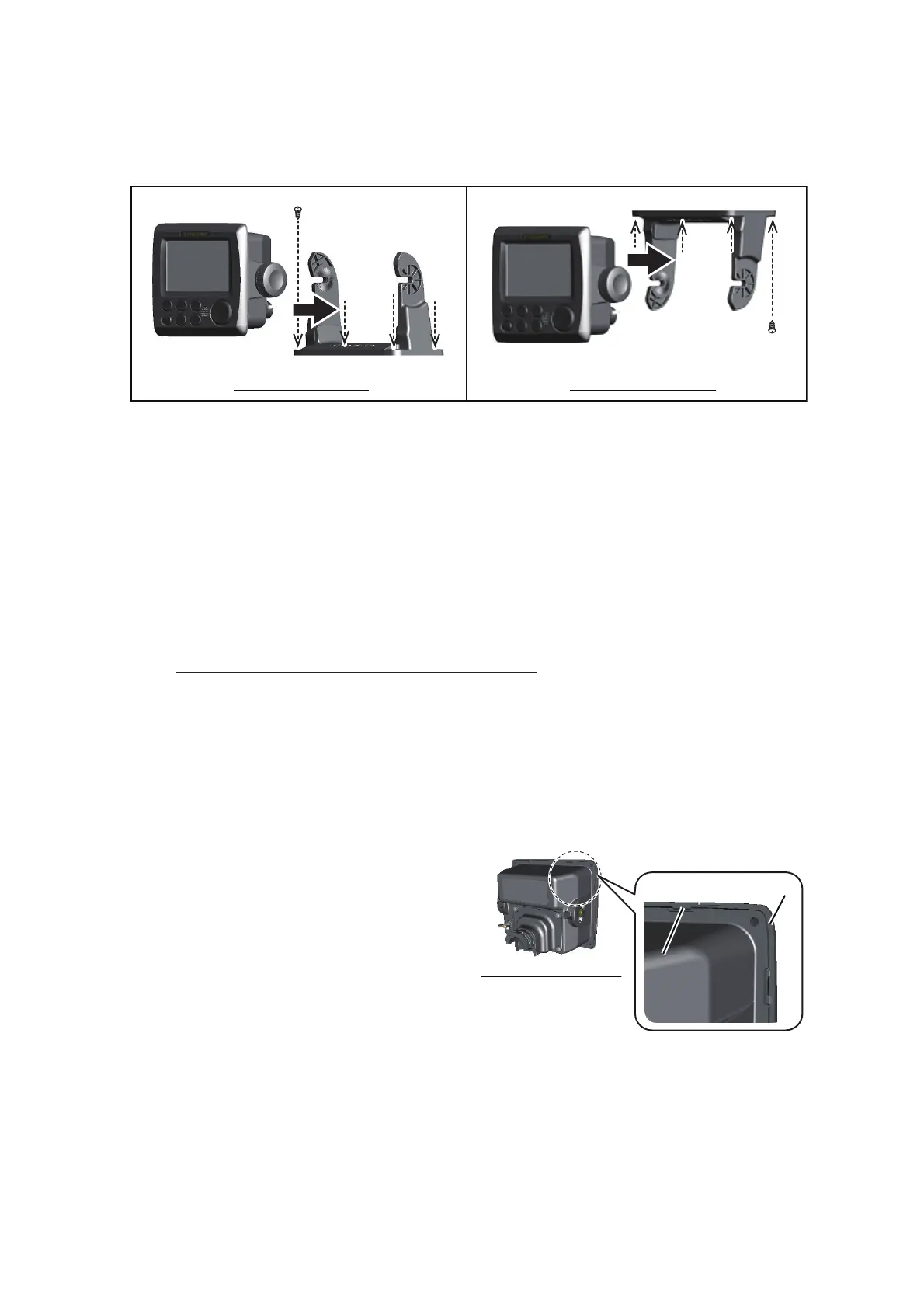

Desktop installation Overhead installation
Rear view of Display Unit
Lift these locking tabs
(8 locations)
Lift these locking tabs
(8 locations)
Front panel
To Next Page
