1. MOUNTING
1-5
6. Run the cabling through the cutout, then, referring to section 2.3.2, connect the
necessary cabling to the display unit.

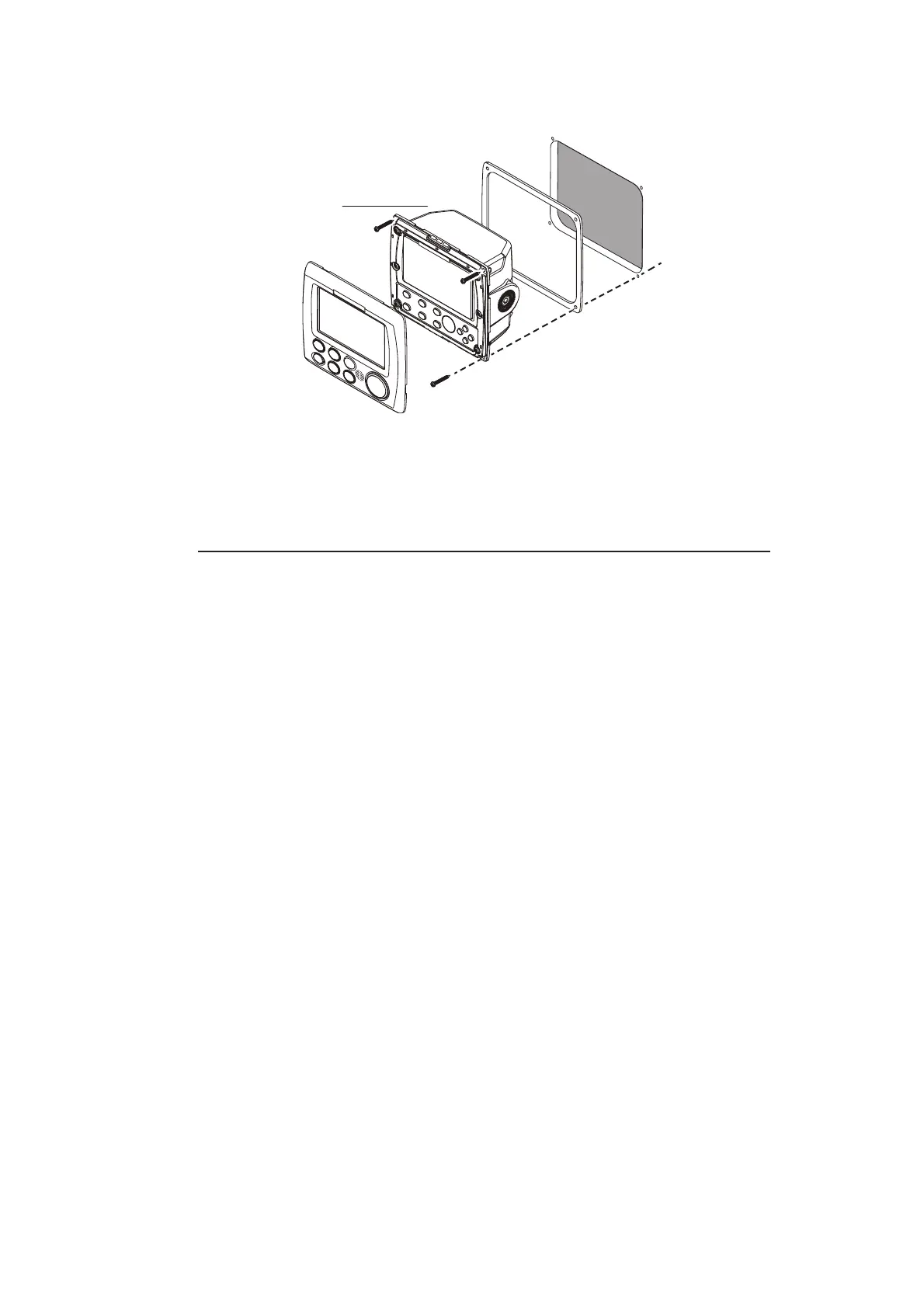

7. Referring to the figure above, fit the display unit to the cutout, then use the sup-
plied self-tapping screws (φ3×20) to secure the display unit to the flush mount pan-
el.
8. Re-attach the front panel detached at step 4.
Flush mounting the display unit (with optional front fixing panel kit)
Use the optional kit (OP24-35), referring to the outline drawings at the back of this
manual and the installation instructions (C42-01310) included with the optional kit.
1.2 Distributor Unit
This unit can be installed on a bulkhead or on the floor. Install it referring to the outline
drawing at the back of this manual for dimensions.
1.2.1 Installation consideration
When selecting a mounting location for the distributor unit, keep the following in mind:
• Keep the distributor unit out of direct sunlight.
• The temperature and humidity should be moderate and stable.
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Keep the unit away from electromagnetic field generating equipment such as mo-
tors and generators.
• For maintenance and checking purposes, leave sufficient space at the sides and
rear of the unit and leave slack in cables. Refer to the outline drawing.
• A magnetic compass will be affected if the unit is placed too close to it. Observe the
following compass safe distances to prevent disturbance to the magnetic compass,
referring to "SAFETY INSTRUCTIONS" on page i.
• Avoid floor mounting the distributor unit in locations where there is water splash.
Keep the cable entry away from water spray and splash. For a bulkhead installation,
install the unit so that the cable entrance must face downward.
Mounting holeMounting hole
F Mount
Cushion
F Mount
Cushion
DISPLAY UNIT
DISPLAY UNIT
Self-tapping screws (ø3×20, 4 pcs)Self-tapping screws (ø3×20, 4 pcs)
Front panelFront panel
