1. MOUNTING
1-2
Grounding
Ground the unit with the supplied ground wire referring to
the figure to the right.
1.1.2 How to fit the cable gasket (When using the OP05-146-1 or
OP05-146-2)
When using the cable assembly OP05-146-1 (5 m) or OP05-146-2 (10 m), its water-
proofing capability can be increased by attaching the cable gasket attached to the ca-
ble assembly.

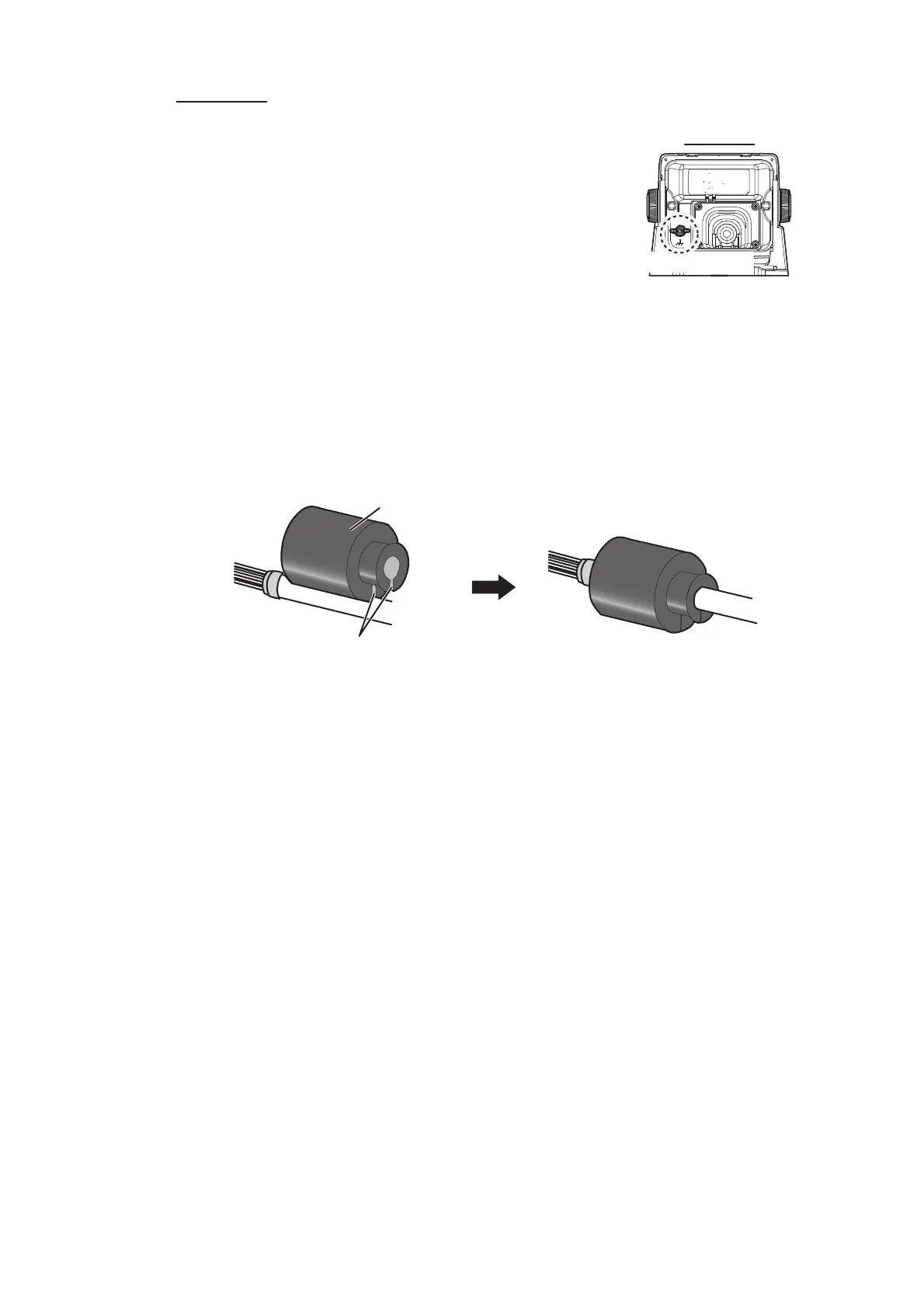

The cable gasket needs to be attached to the cable as shown below. The cut line must
face downward to prevent the water intrusion to the unit.
Regarding how to connect the cabling to the Display and how to fit the cable gasket to
the cable clamp, referring to section 2.3.2.
1.1.3 How to fit the optional waterproofing kit (OP05-139)
The optional waterproofing kit (OP05-139) must be fitted at the same time as the ca-
bling is connected to the display unit.
The waterproofing kit (OP05-139) contains the following items:
• Cover gasket (Type: 05-109-3504, Code:100-403-800-*) ×1
• Cable gasket (Type: 05-109-3503, Code: 100-403-792-*) ×1
1. Unfasten the four screws on the rear cable clamp, then remove the cable clamp
to reveal the WAGO connector.
To Next Page
